All things connectivity

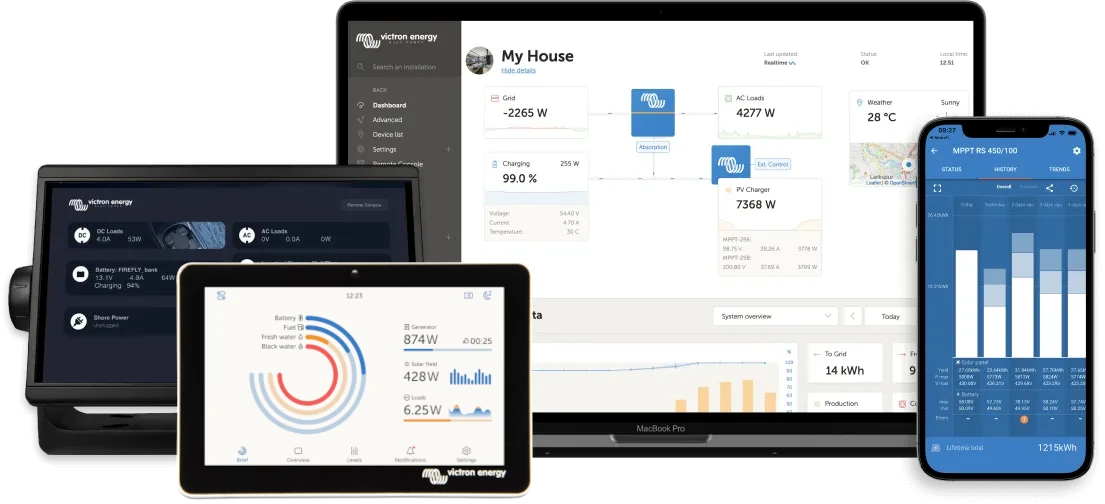

Experience the power of Victron Energy Monitoring
The most up-to-date monitoring solution on the planet means peace of mind off the grid.
Bring the best of Victron systems together in a powerful experience that will redefine life off the grid. Thanks to the know-how that powers our connected products, you can monitor and control your systems, prevent issues and resolve challenges straight from our VictronConnect App and VRM portal.

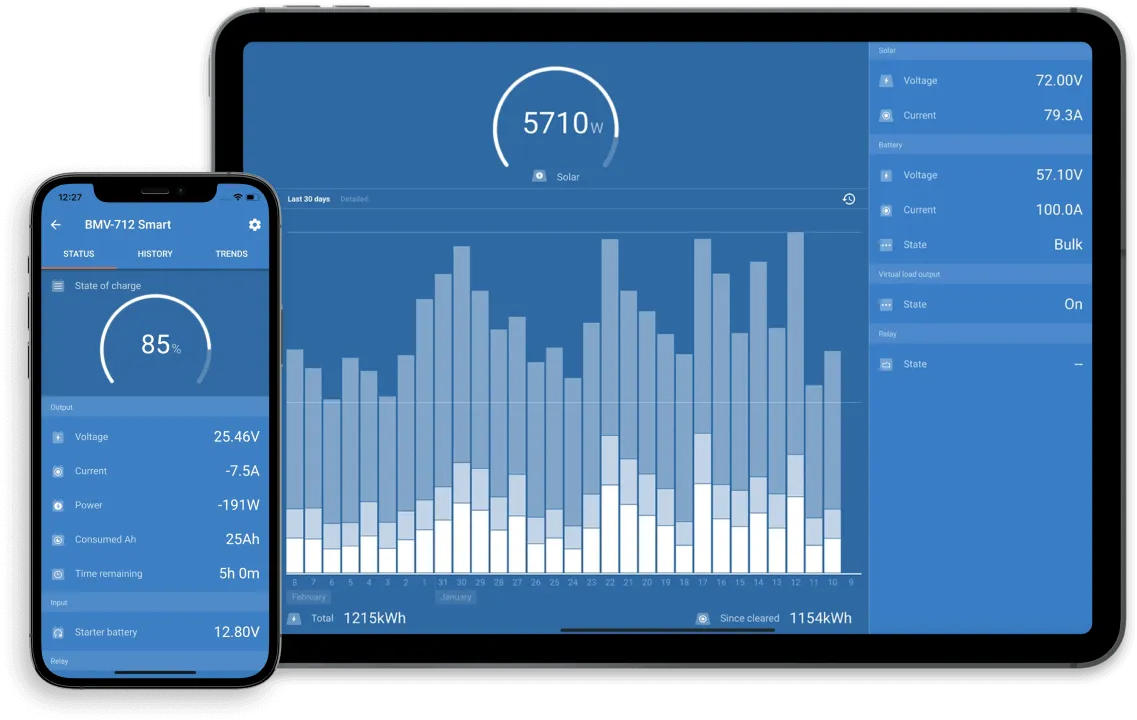

VictronConnect
Monitor, configure and update smart products with ease. Manage devices with simple controls.

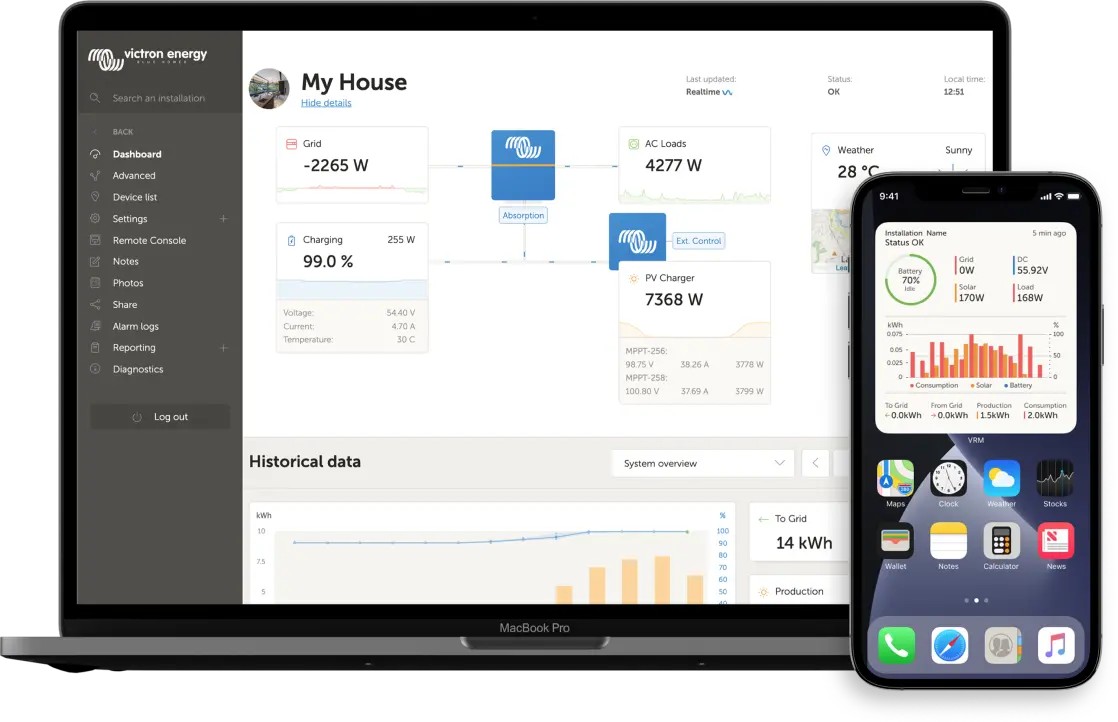

VRM - Remote Monitoring
Monitor complete systems remotely within a glance. Stay in perfect control thanks to an impressive array of features and integrations.

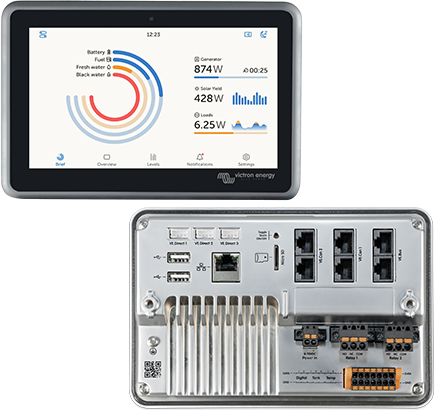

Ekrano GX
Connect it all.
Control it all.
Unlock the full power of Victron Remote Monitoring with the Ekrano GX.
Explore Ekrano GX
Solution Finder
Which monitoring solution is right for you?
First decide if remote monitoring is desired and through which device. Secondly, check the monitoring- and connectivity options of your installation’s building blocks and decide which features are required.
01
Decide on remote monitoring
Do you need remote monitoring, now or later? If local checks are enough, skip to step 2.
If yes, add a communication device and connect it to the internet.

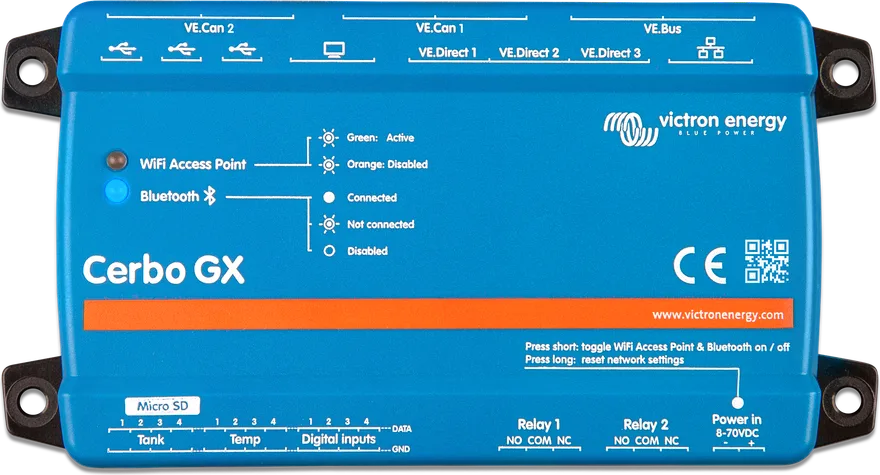

For a smaller system that only needs monitoring, the GlobalLink is usually the right choice, with cellular connectivity included. For a larger installation with the need for managed batteries, remote control and firmware updates, tank and temperature sensors, third party integrations or MFDs, choose a Cerbo GX or Ekrano GX. An inverter or charger with a GX built in sits in between, fewer connectivity options, but a more compact setup.
Compare these options below.

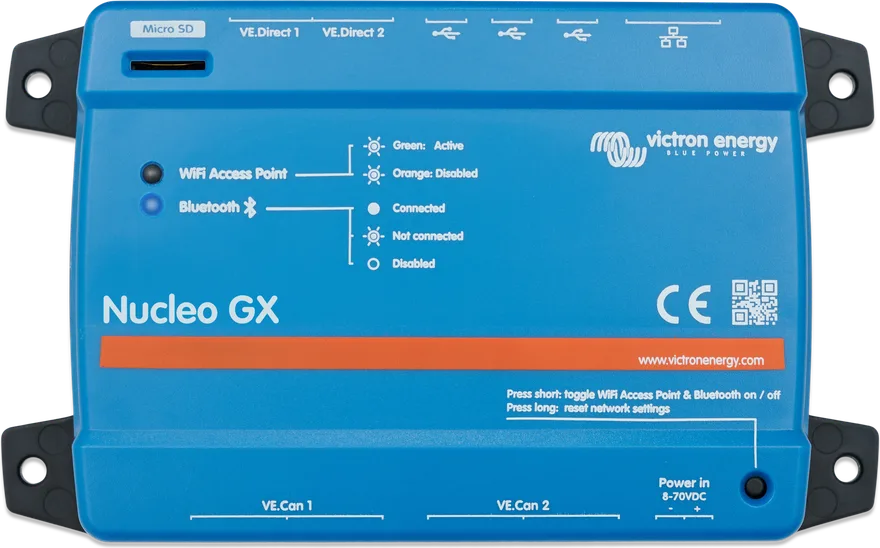

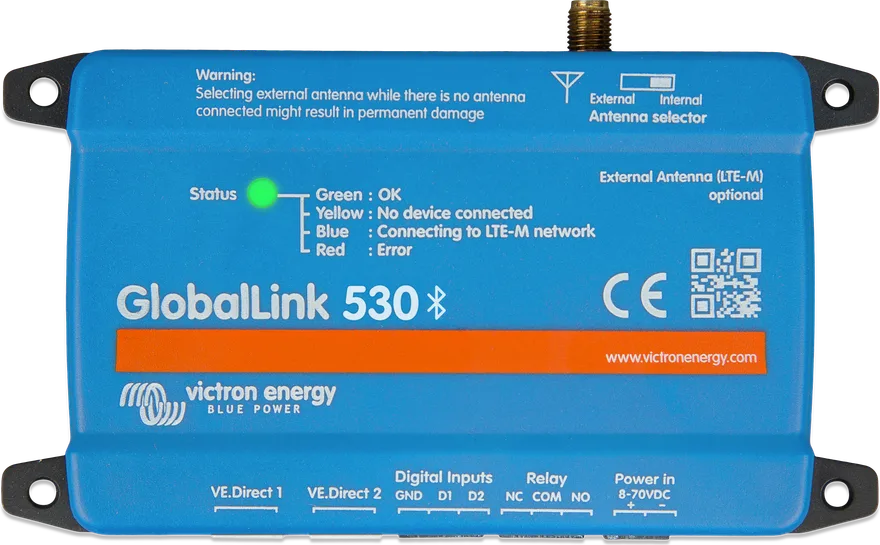

Ekrano GXCerbo GXNucleo GXGlobalLink 530GlobalLink 520Inverter/chargers (/MPPTs) with GX built-in
Remote monitoring and control with full integration options. Harmonises and maximises the system’s performance (also in offline configurations). Built-in touchscreen for quick local monitoring and optimal control.View product Remote monitoring and control with full integration options. Harmonises and maximises the system’s performance (also in offline configurations). For optimal control add a GX Touch display.View product Delivers Ekrano GX-level processing power at a lower cost, and connects directly to RS and HS series inverter/chargers, as well as Solar Chargers, inverters and other products with a VE.Direct port.View product Remote monitoring for smaller installations, with VE.Direct and Bluetooth Smart products only. Standard 4G LTE Cat 1 with 2G fallback for broad coverage worldwide, plus a 5 year prepaid SIM included. Sends monitoring data only, remote control and firmware updates are not available.View product Remote monitoring for smaller installations, with VE.Direct and Bluetooth Smart products only. LTE M offers low power use, check coverage in your area first*. Includes a 5 year prepaid SIM. Sends monitoring data only, remote control and firmware updates are not available.View product Inverter/chargers and MPPTs with a built-in GX. A more compact option with slightly less connectivity than a standalone GX device.View product
Product connectivity
Explanation about portsConnect all types of Victron connected products with a large array of different ports / temperature and tank inputs / relays. Integrate third party devices such as managed batteries, MFD’s, AC-PV inverters and more. See datasheet for details.Connect all types of Victron connected products with a large array of different ports / temperature and tank inputs / relays. Integrate third party devices such as managed batteries, MFD’s, AC-PV inverters and more. See datasheet for details.2x VE.Can ports, 2x VE.Direct, 3x USB. No HDMI, no VE.Bus ports (add MK3-USB), no tank inputs (add GX Tank USB), no digital inputs. See datasheet for details.2x VE.Direct ports (isolated) plus up to 10 Smart products via Bluetooth. 2 digital inputs (pulse counters) and 1 remote-controllable relay. RuuviTag sensors supported. See datasheet.2x VE.Direct ports (isolated) plus up to 10 Smart products via Bluetooth. 2 digital inputs (pulse counters) and 1 remote-controllable relay. RuuviTag sensors supported. See datasheet.Built-in GX integrates the inverter/charger or MPPT directly. Connect additional Victron products via the available ports. See datasheet for details.
Updating firmware or settings
Remote firmware & settings updates: via VictronConnect-Remote and VRM. Advanced (system) settings such as three-phase configurations are done with VE Configuration tools for VE.Bus Products**Remote firmware & settings updates: via VictronConnect-Remote and VRM. Advanced (system) settings such as three-phase configurations are done with VE Configuration tools for VE.Bus Products**Remote firmware & settings updates: via VictronConnect-Remote and VRM. Advanced (system) settings are done with VE Configuration tools.No. Firmware and settings of connected products cannot be changed remotely.No. Firmware and settings of connected products cannot be changed remotely.Remote firmware & settings updates: via VictronConnect-Remote and VRM.
Remote connectivity
Connection: Wifi, LAN, optional GX LTE 4G module. Can be used without internet for system harmonisation purposes (remote monitoring not available).Connection: Wifi, LAN, optional GX LTE 4G module. Can be used without internet for system harmonisation purposes (remote monitoring not available).Connection: Wifi, LAN, optional GX LTE 4G module. 2x VE.Can, 2x VE.Direct, 3x USB, Ethernet, WiFi and Bluetooth.Connection: 4G LTE Cat 1 (up to 10 Mbps down, 5 Mbps up) with GSM / GPRS / EDGE 2G fallback. Broad coverage worldwide, except US.Connection: LTE-M (Cat M1). 17 bands from 699 to 2690 MHz.
* Check LTE-M availability in your area.Connection: Wifi, LAN, optional GX LTE 4G module.
* Check LTE-M availability in your area.Connection: Wifi, LAN, optional GX LTE 4G module.
Monitoring options
Geofencing
Yes, through a third party GPS USB dongle.Yes, through a third party GPS USB dongle.Yes, through a third party GPS USB dongle.NoNoYes, through a third party GPS USB dongle.
Data Storage
Local data storage
Yes
Cloud storage
Yes, in real-time (using ±150MB/month)
Local data storage
Yes
Cloud storage
Yes, in real-time (using ±150MB/month)
Local data storage
Yes
Cloud storage
Yes, in real-time (using ±150MB/month)
Local data storage
Last 15 minutes only.
Cloud storage
Yes, not real-time
Local data storage
Last 15 minutes only.
Cloud storage
Yes, not real-time
Local data storage
Yes
Cloud storage
Yes, in real-time
Optional accessoires
- GX LTE 4G - adds 4G connectivity
- MK3-USB - adds VE.Bus ports
- GX Tank USB - adds tank inputs
- Outdoor wall-mount antenna (3 m)
- Outdoor puck antenna (3 m)
- Outdoor wall-mount antenna (3 m)
- Outdoor puck antenna (3 m)
02
Product connectivity
After the system's design has been created, it’s time to decide on the monitoring and connectivity specifications of your system’s building blocks. Generally, look for Smart products if local monitoring with VictronConnect is sufficient. For remote monitoring, ensure the product can be connected to the communication device of choice through one of the following options.
Smart productsProducts with a VE.Direct portProducts with a VE.Bus portProducts with a VE.Can port
Smart products are equipped with Bluetooth, and therefore work with VictronConnect for local monitoring and firmware/settings updates. Remote monitoring can be enabled in most cases, as smart products often feature a communication port (but not always).Products with a VE.Direct port that aren’t ‘smart’ yet, can either be upgraded with a VE.Direct Bluetooth dongle, OR they can be wired to a GX-device or GlobalLink to enable remote connectivity. VictronConnect-Remote and VRM let you access the products from remote and when you are standing right by them, provided your phone and your system have an active internet connection.Products with a VE.Bus port, generally Victron inverters or inverter/chargers are wired to a GX-device through a cable to enable real-time remote connectivity. Alternatively a VE.Bus Smart dongle adds local Bluetooth connectivity through VictronConnect. See also ‘advanced settings’.Products with VE.Can, such as third party managed batteries, or multiple daisy chained MPPTs, can share their individual data to the wider system. A GX-devices uses this data to harmonise and maximise the performance and, when connected to internet, shares the monitoring data with VRM in real-time.
Works with VictronConnect
Thanks to Bluetooth built-in.
When a Victron product also has Smart capabilities, yes, otherwise, add a VE.Direct Bluetooth dongle* or enable VictronConnect-Remote with a communication device.When a Victron product also has Smart capabilities, yes, otherwise, add a VE.Bus Smart dongle* or enable VictronConnect-Remote with a communication device.When a Victron product also has Smart capabilities, yes. Enable VictronConnect-Remote with a communication device.Works with which communication device
Globallink
- Bluetooth
- VRM through GX or GlobalLink
GX-device
- VictronConnect
- VRM through GX or GlobalLink
Globallink
using the VE.Direct port.GX-device
Using the VE.Can port.Globallink
Only when also a VE.Direct port is present on the device.GX-device
using the VE.Bus port.Globallink
Only when also a VE.Direct port is present on the device.GX-device
using the VE.Bus port.WAYS TO UPDATE FIRMWARE OR SETTINGS
VictronConnect
VictronConnect-Remote or VRM
when connected to a communication device.
Via computer
with a VE.Direct to USB interface when VE.Direct port is present.
VictronConnect
(when product has Smart capabilities)
VictronConnect-Remote or VRM
when connected to a communication device.
Via computer
with a VE.Direct to USB interface
VictronConnect
(when product has Smart capabilities)
VictronConnect-Remote or VRM
when connected to a communication device.
Advanced settings
with VE Configuration tools through VRM or PC using the Interface MK3-USB dongle.
VictronConnect
(when product has Smart capabilities)
VictronConnect-Remote or VRM
when connected to a communication device.

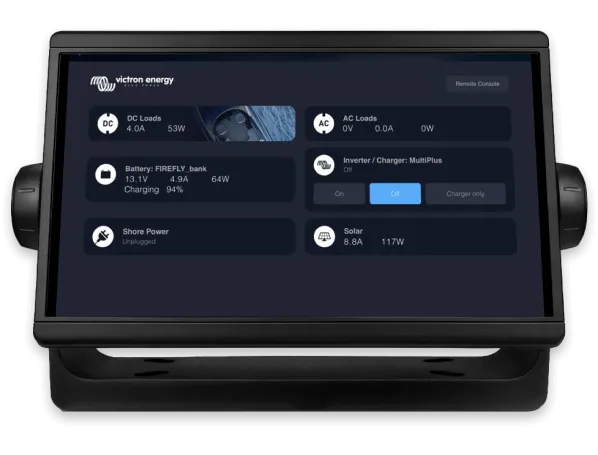

Seamless MFD & NMEA integration.
Integrate your marine Multi Functional Display seamlessly to monitor and control your system right from your glass bridge. Many of the top brands are supported and installation is plug and play. Simply share Victron data through NMEA2000.
Learn more

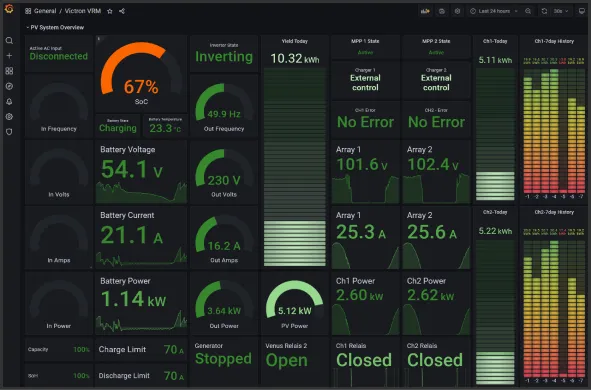

Build advanced custom dashboards with Grafana
Create advanced custom dashboards with the Venus-docker-grafana solution.
Learn more

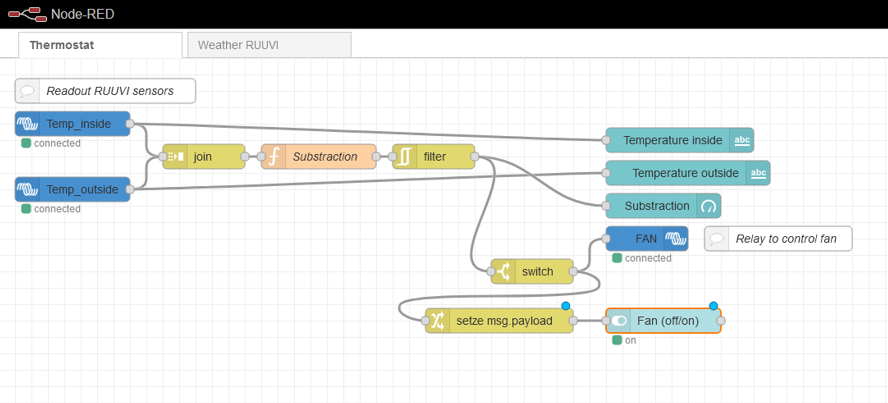

Advanced automations
Take system customization to the next level and create intelligent automation flows with Node Red. Aggregate and integrate multiple data streams with Signal K for smooth sailing.
Learn more
Contact your local dealer
Every power system is different and different setups and locations present unique challenges. That is why Authorised Victron Energy dealers are trained with the highest level of know-how. They feel a great responsibility to always advise the right solution and do whatever they can to provide peace of mind for years to come. Feel free to ask any question, even if it’s a quick check, they are happy to help you.
Ask your local installer for adviceEkrano GX
Complete communication centre with built-in waterproof touchscreen. Enables VictronConnect-Remote and VRM.

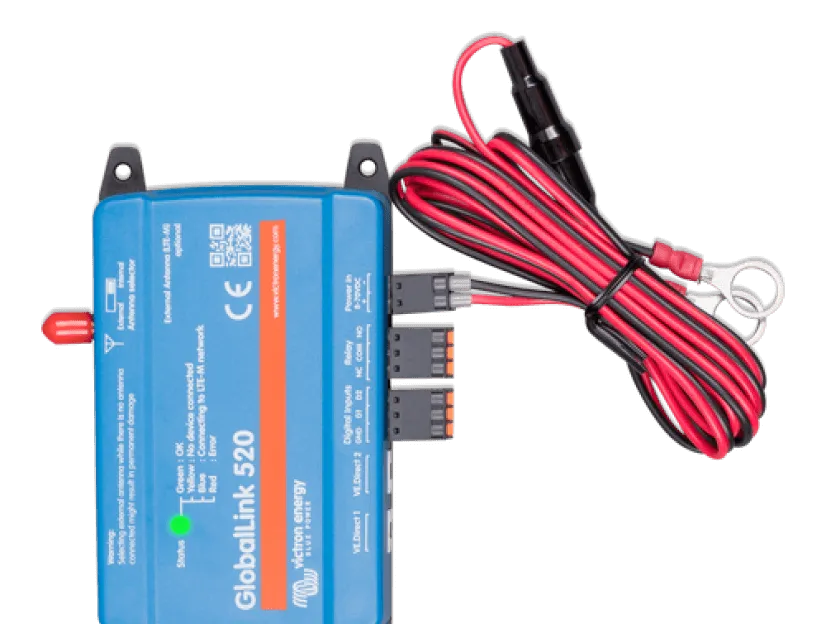

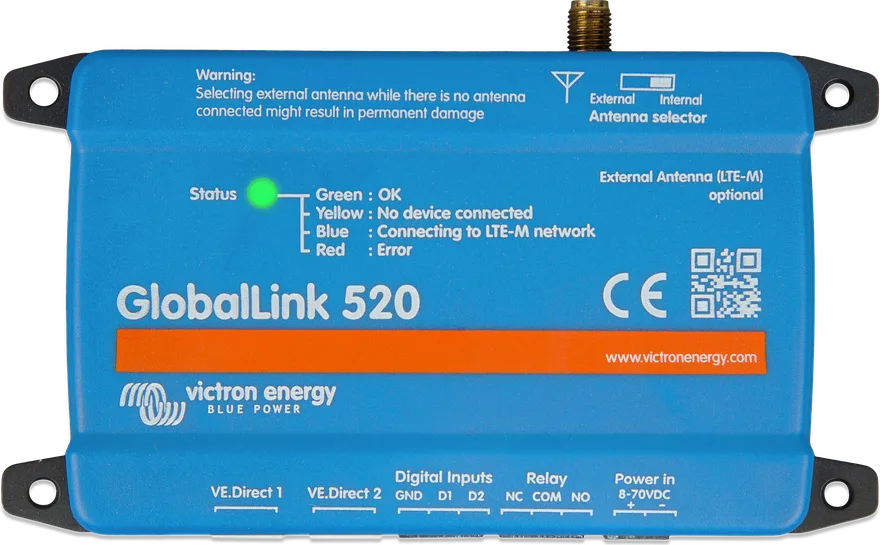

GlobalLink 520
Remote monitoring for smaller installations based on LTE-M 4G connectivity.
VE.Direct Bluetooth dongle
Add Bluetooth connectivity to devices with a VE.direct port, so they become accessible with VictronConnect.
VE.Bus Smart Dongle
Add Bluetooth connectivity to devices with a VE.Bus port, so they become accessible with VictronConnect.

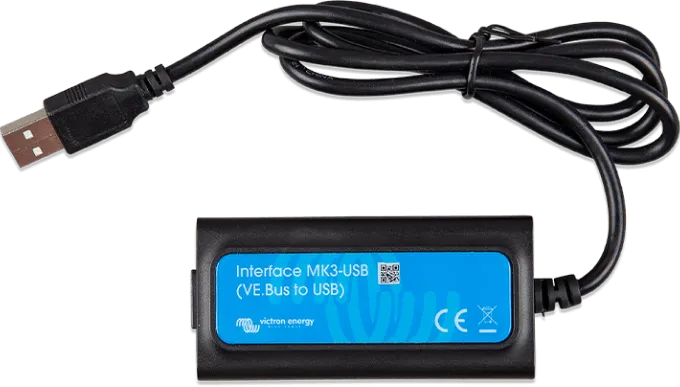

Interface MK3-USB (VE.Bus to USB)
Update firmware and settings of VE.Bus products in parallel or three-phase configurations via a computer.
VRM-Remote monitoring
The remote monitoring platform with endless integration possibilities.
VictronConnect
The best of Victron Smart products. All in one app.
