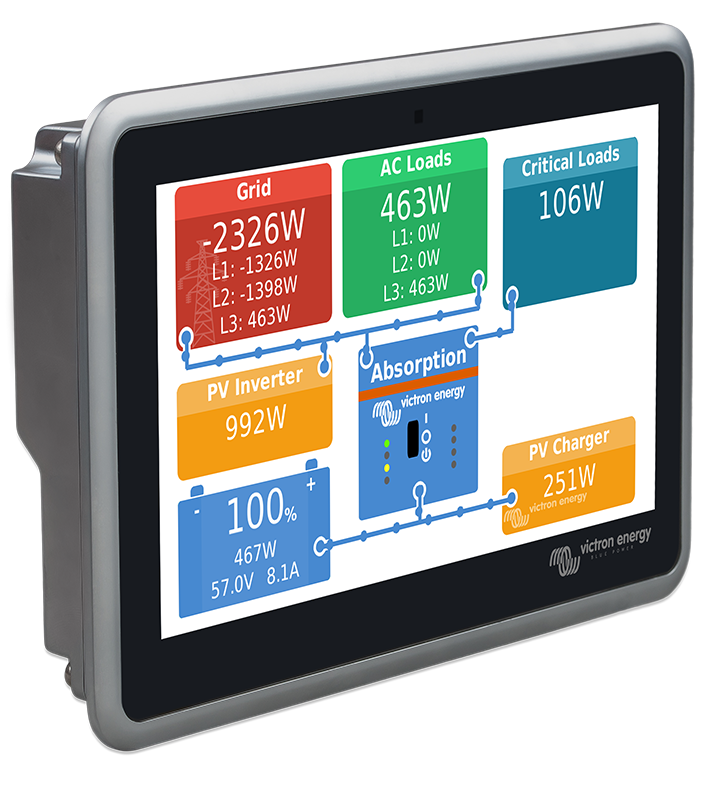

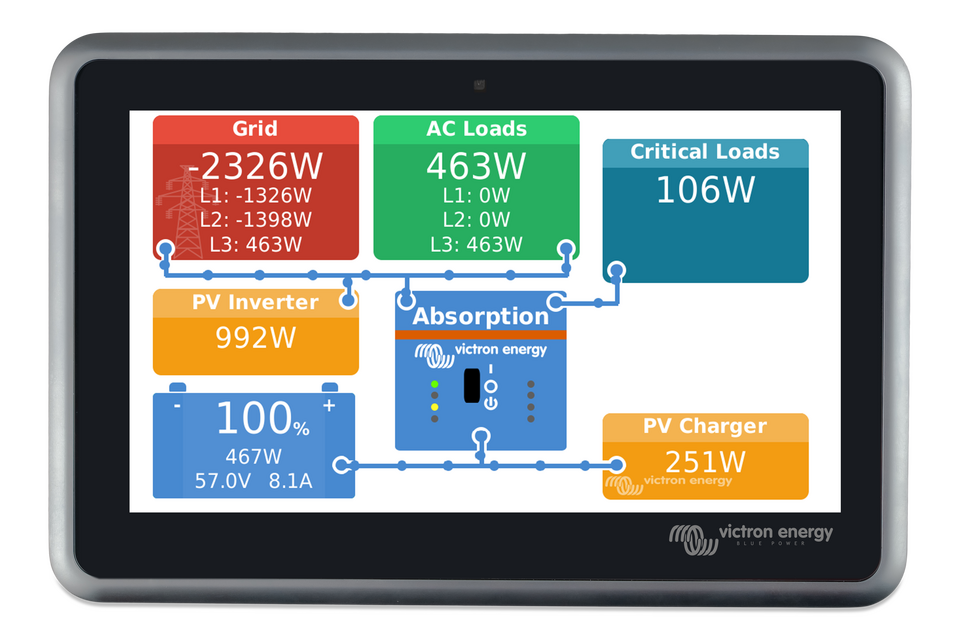

Ekrano GX

Az Ekrano GX a következő generációt képviseli a GX termékcsaládon belül. A minden eddiginél nagyobb teljesítményű GX eszköz a csatlakozások és interfészek teljes körével, valamint beépített 7 collos érintőképernyőjével biztosítja, hogy mindig tökéletesen kézben tarthassa a rendszerét és maximálisan kihasználhassa teljesítményét – bárhol is tartózkodik. Egyszerűen csatlakozzon a rendszerére a Victron Remote Management (VRM) portálunkon, vagy pedig közvetlenül a beépített érintőképernyőn, a többfunkciós kijelzőn (MFD) vagy a VictronConnect alkalmazásunkkal a rendszer beépített WiFi hozzáférési pontjának köszönhetően.
Az Ekrano GX egyben a Color Control GX utóda.
Ekrano GX
Ekrano GX
Ekrano GX
background
  • Vízálló érintőképernyő

  • Masszív alumínium burkolat

  • Rendkívül nagy teljesítményű processzor

  • VRM távfelügyelet

  • VictronConnect alkalmazás

  • Integrálható hajós multifunkciós kijelzőkkel és NMEA 2000-rel

Year warranty

World-wide support

Ekrano GX

The gateway to independence

Build quality

Designed to work in any condition

Switch to dark mode for low light situations and instantly check your power system status, day or night.

Whatever the weather, you can rely on your Ekrano GX with its waterproof 7-inch touchscreen display. No need to be gentle, the robust aluminium casing of the Ekrano GX provides ample protection for the technology inside.

Compatibility

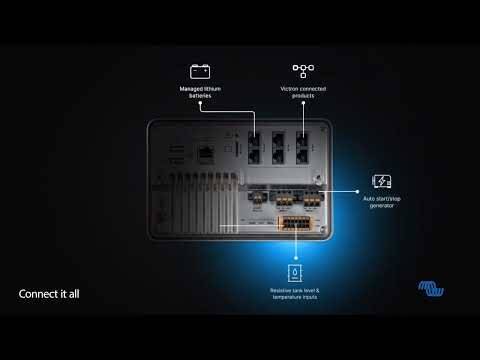

Connect it all. Control it all.

Experience the full power of Victron-connected products and an ever growing list of compatible third-party devices and integrations with this all-in-one communication centre.

Ekrano GX border
Ekrano GX dark mode

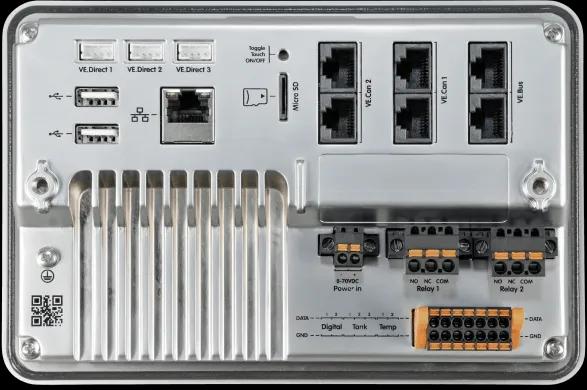

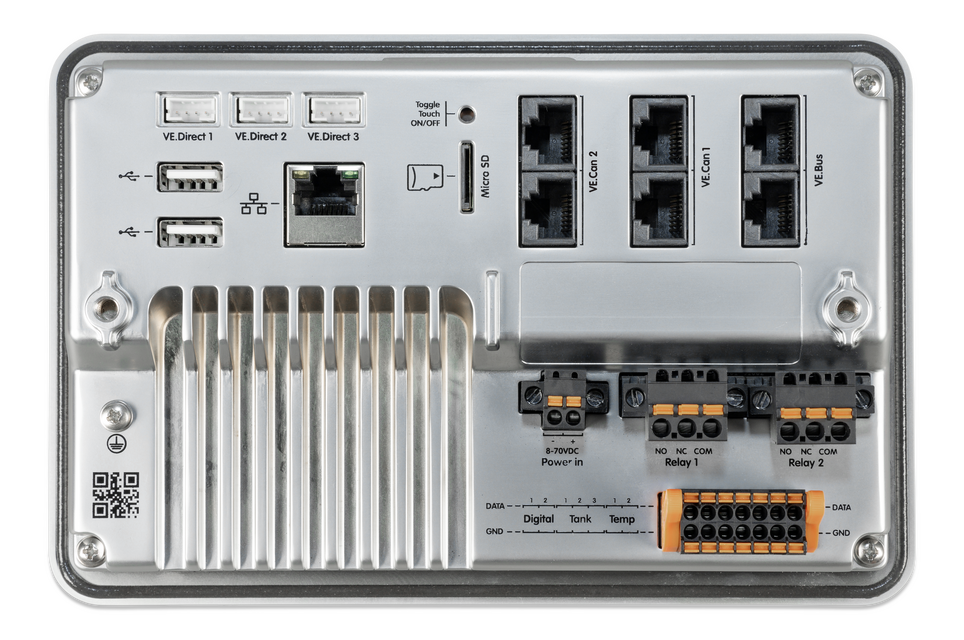

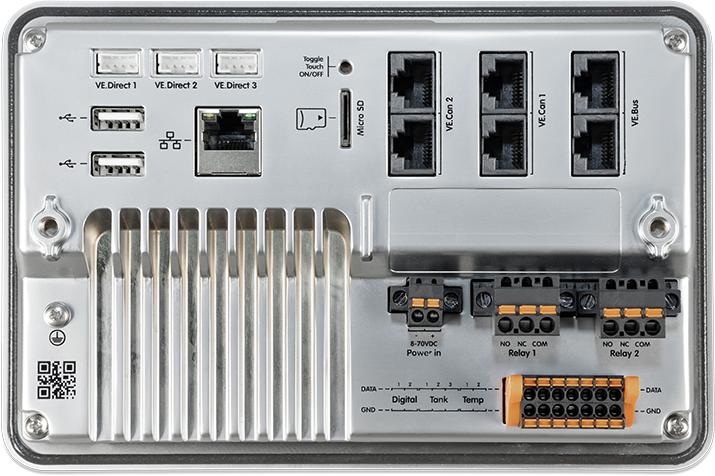

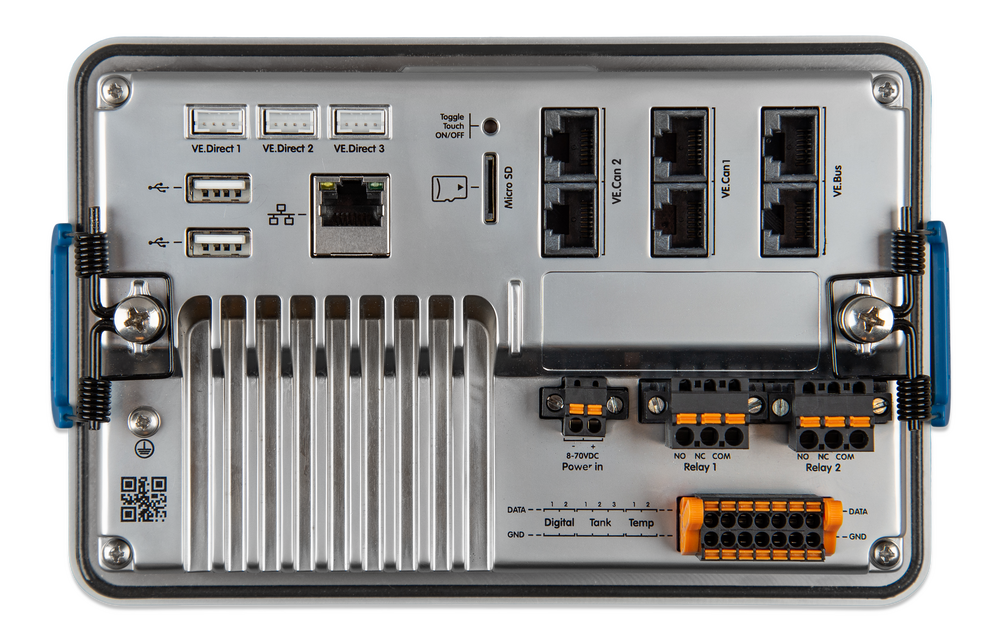

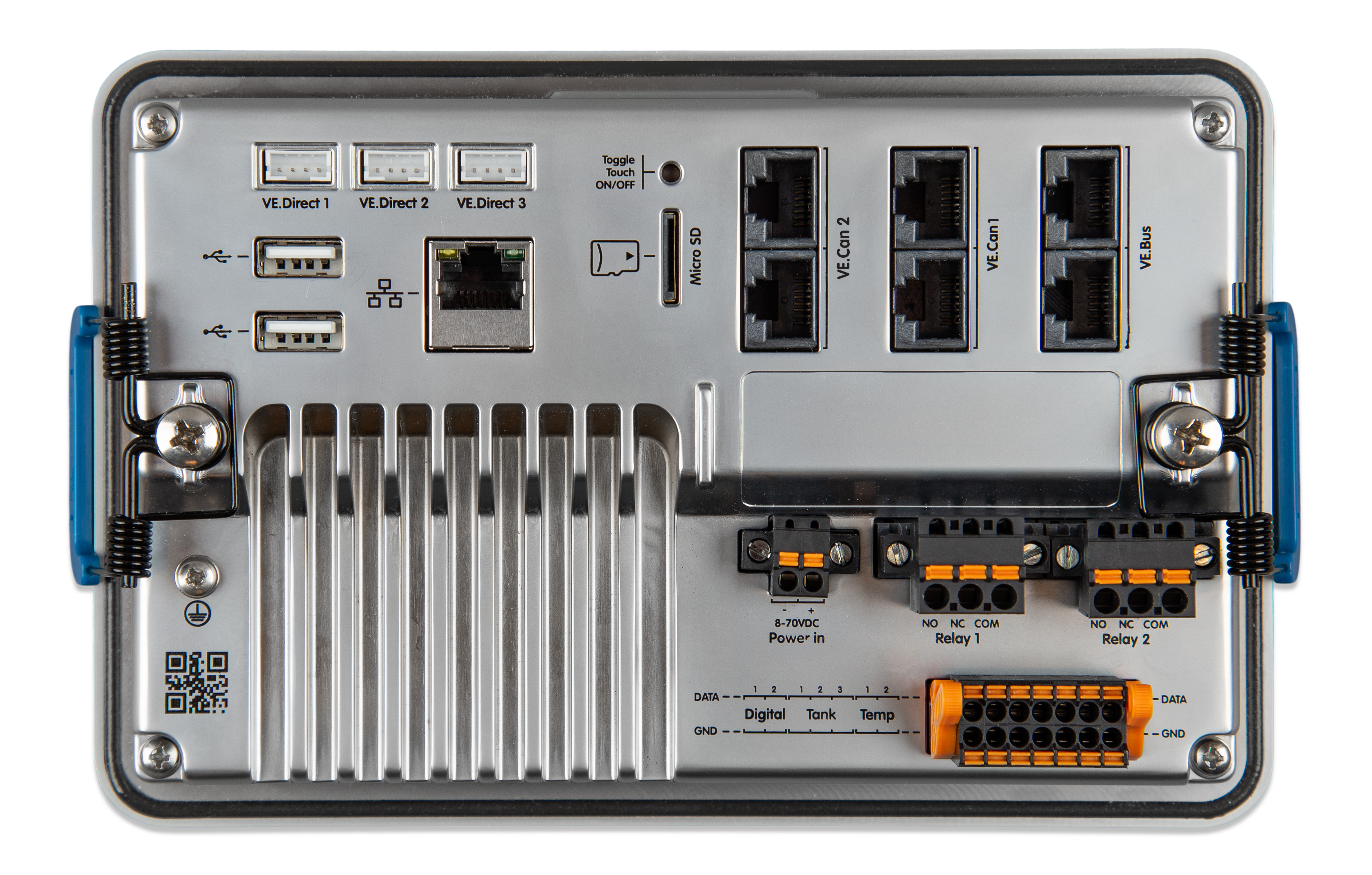

Back side of the Ekrano GX

1

2

3

4

5

6

boat

1

Managed lithium batteries

2

Victron connected products

3

Auto start/stop generator

4

Resistive tank level & temperature inputs

5

Solar irradiance & wind meters

6

Marine MFD's

Next level engineering
Always up-to-date software

Extremely powerful processor

The Ekrano GX is our most powerful GX device to date. Its powerful quad-core processor manages all connected Victron products and a large range of supported third party devices with ease.

Venus OS v3.0

VenusOS

System monitoring just entered a new era, with Venus OS 3.0. Now, keeping up with your electrical system is easier and more intuitive than ever. The sleek human-centred design and updated colour scheme helps you to stay focussed on the things that matter to you most.

GX - Battery compatibility

For seamless integration with an ever growing list of leading third-party lithium battery manufacturers, a GX device is required. Great efforts are made to ensure a deep and hassle-free integration of supported batteries.

Simple mounting and installation

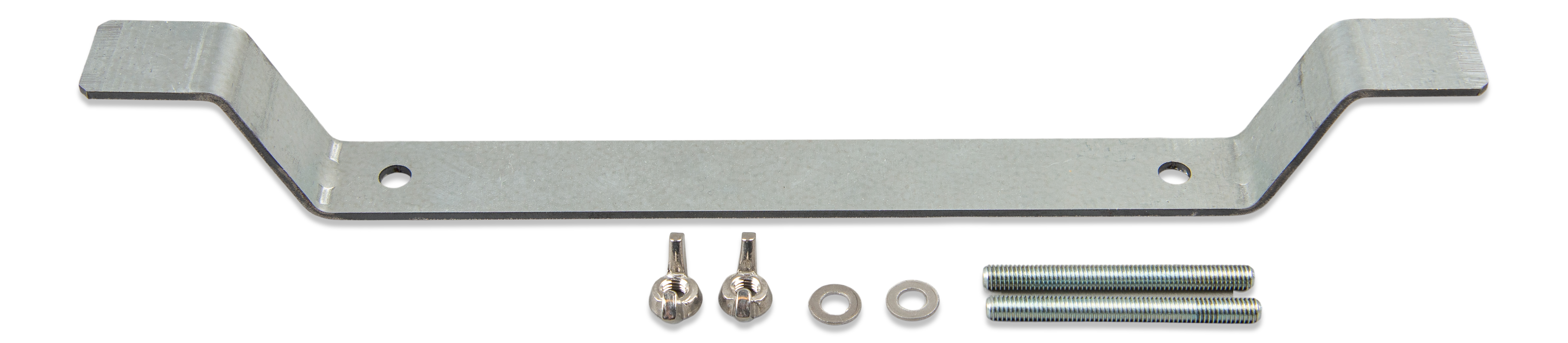

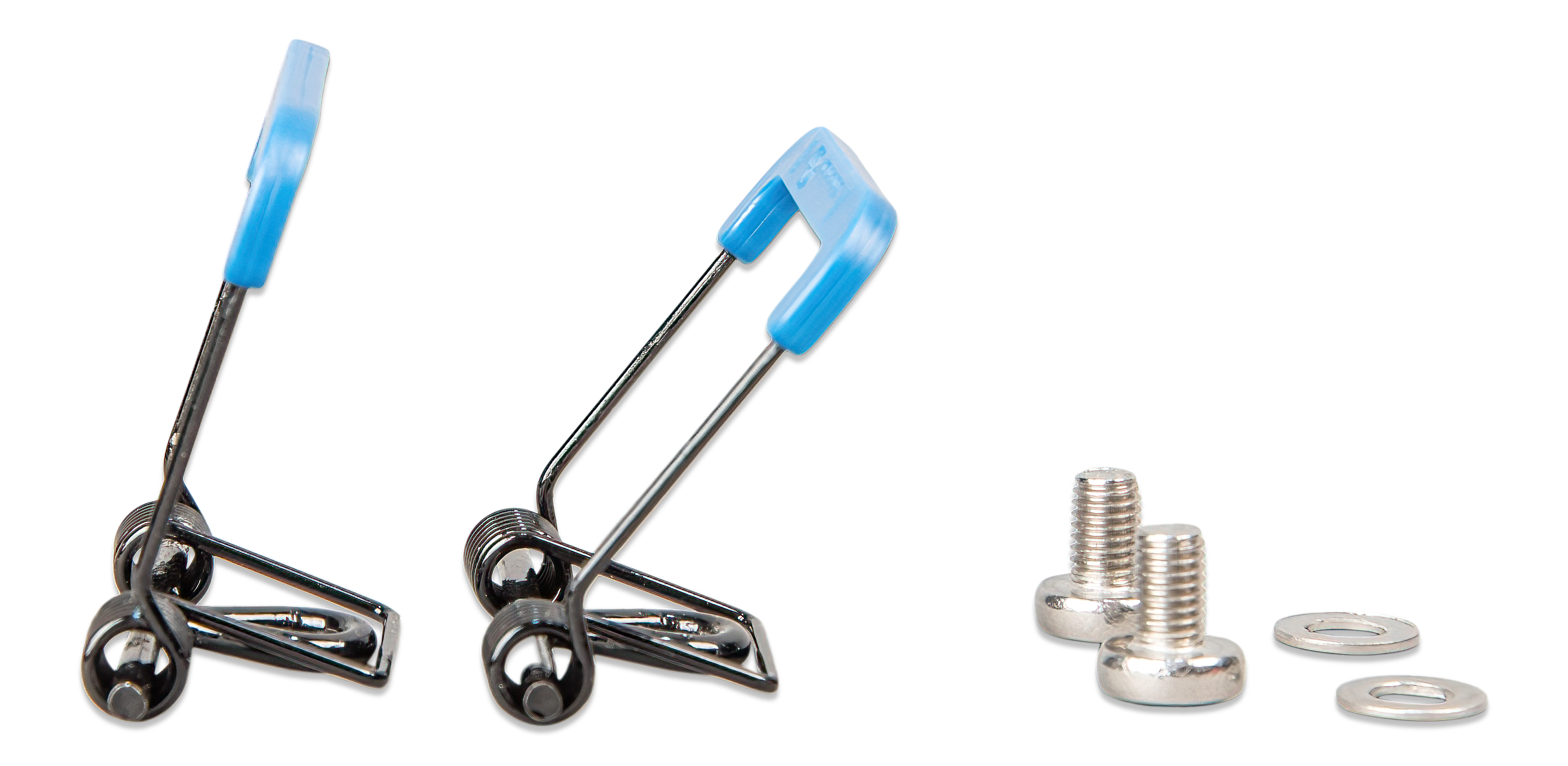

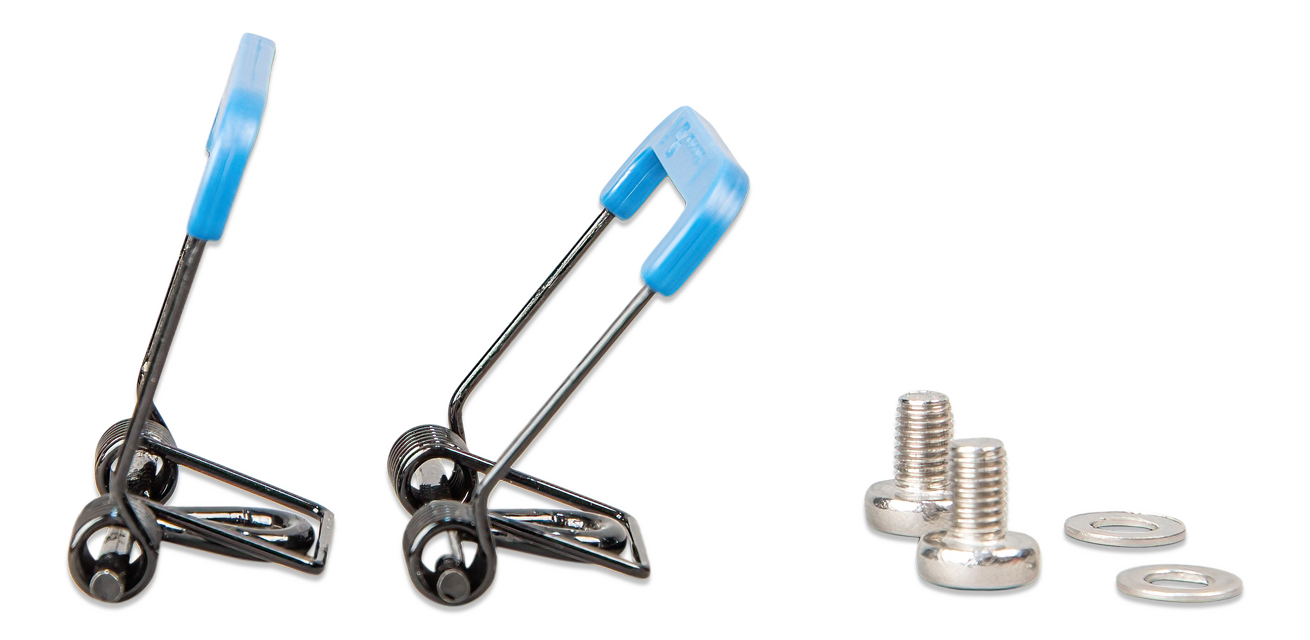

The super slim design offers a lot of flexibility in designing a crisp and clean dashboard. The Ekrano GX is optimised for flush panel or blind hole mounting, with all necessary mounting material included. All ports remain easily accessible from the back.

Watertight

When installed with the steel bracket, the display of the Ekrano GX is protected from dust and water from the outside, rated with IP54.

Touch disabled button

Easily disable the touch function with a recessed button on the back, to prevent unauthorised use. Or enable it again with the push of a button.

Venus OS

Monitoring powerhouse

Monitor the performance of your energy system with the powerful Venus OS. Configure the system completely to your every need, use simple controls to stay on top and let our algorithms do the rest.

  • The dashboard

  • Live power overview

  • Tank levels and environment

  • Completely in control

  • Safety net

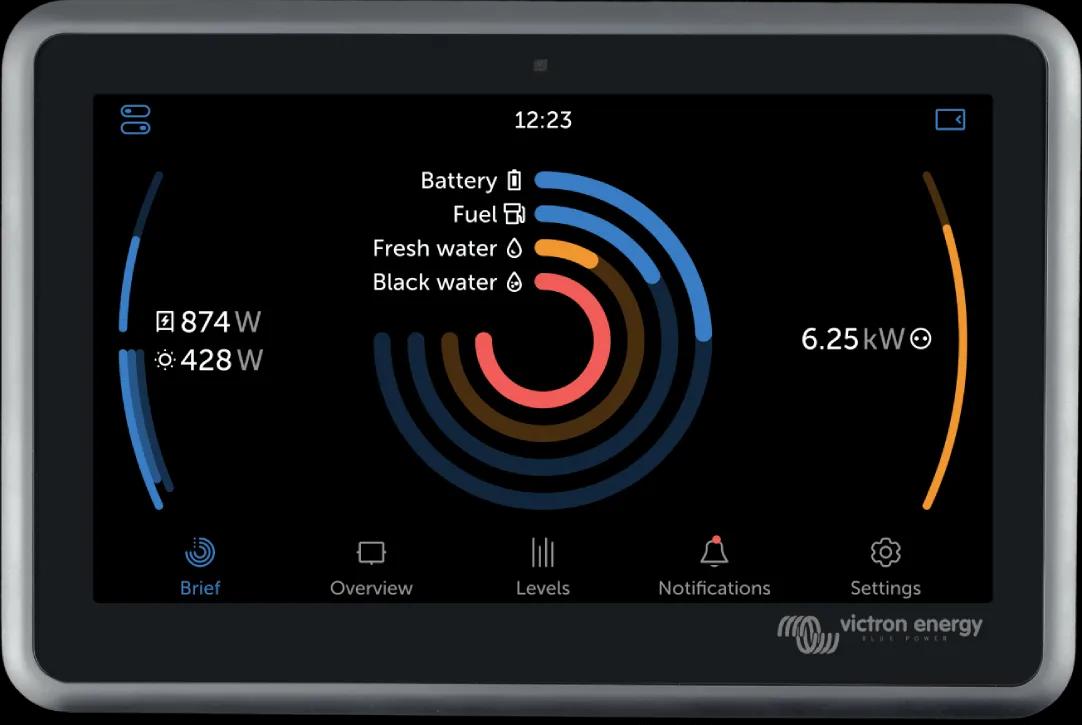

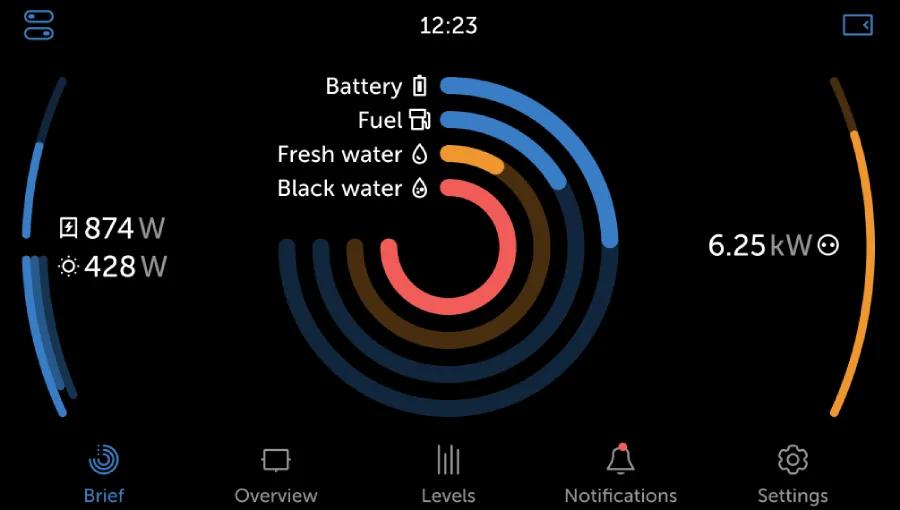

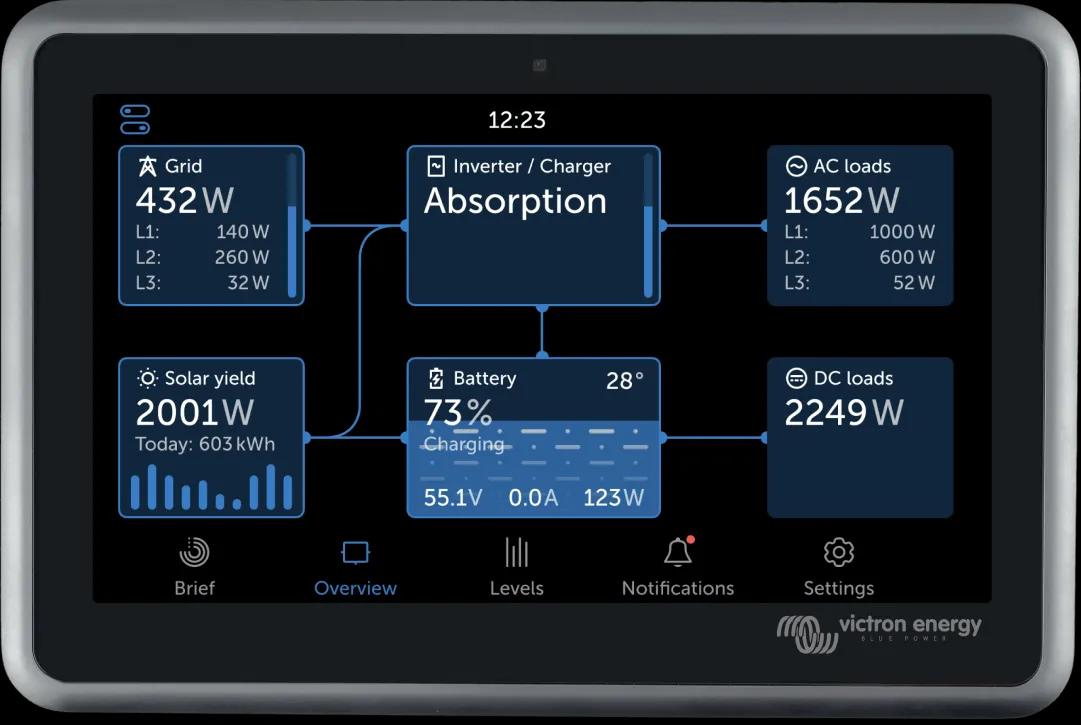

The dashboard

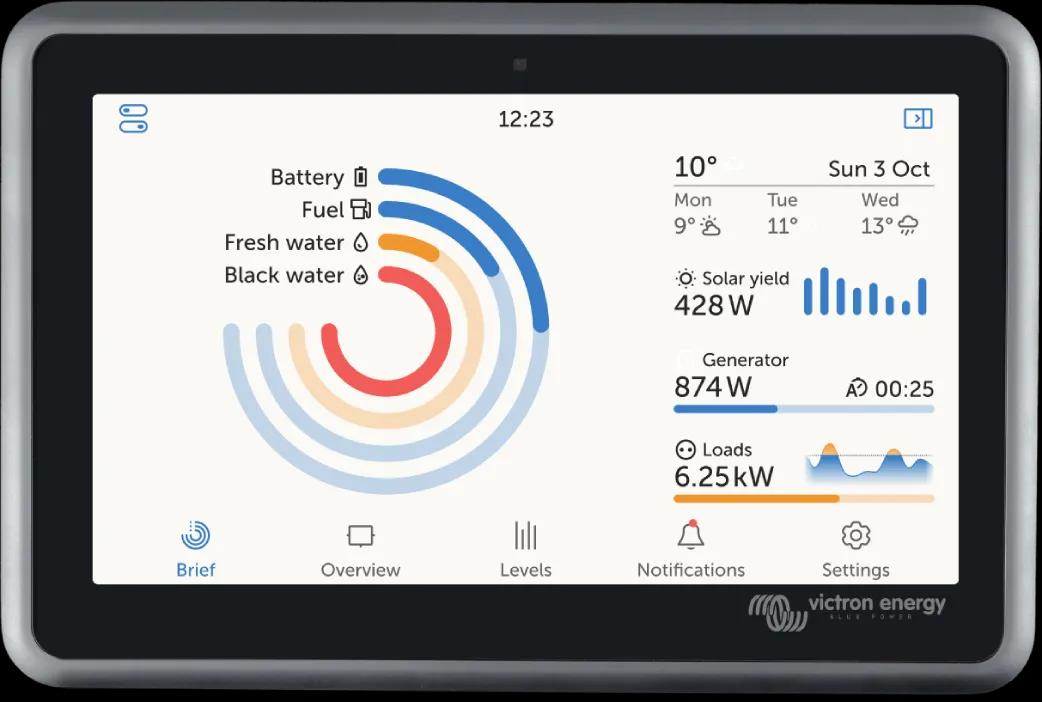

Your entire system at a glance, with a clear overview of all vital data. Instantly check power input from the grid, wind and solar power harvest, battery levels, tank levels and power consumption.

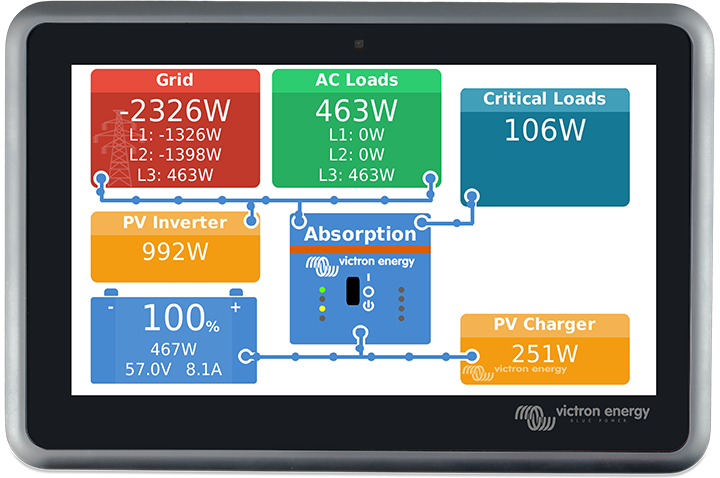

Live power overview

Instantly monitor the battery state of charge, power consumption, wind and solar power harvest, generator, alternator and mains power. All in one clear overview.

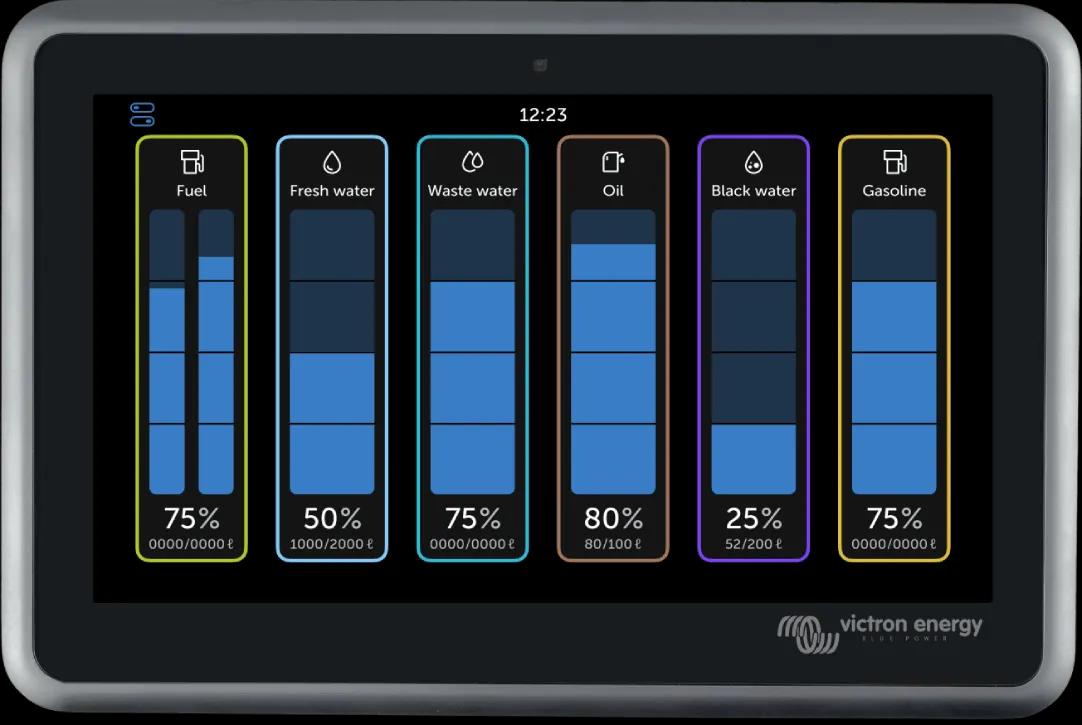

Tank levels and environment

Keep an eye on levels of fresh water, fuel, black water and any other tank liquid in your system, as well as environmental data like temperature and relative humidity. With customizable labels and critical level indicators, you’ll see instantly if any of them needs attention.

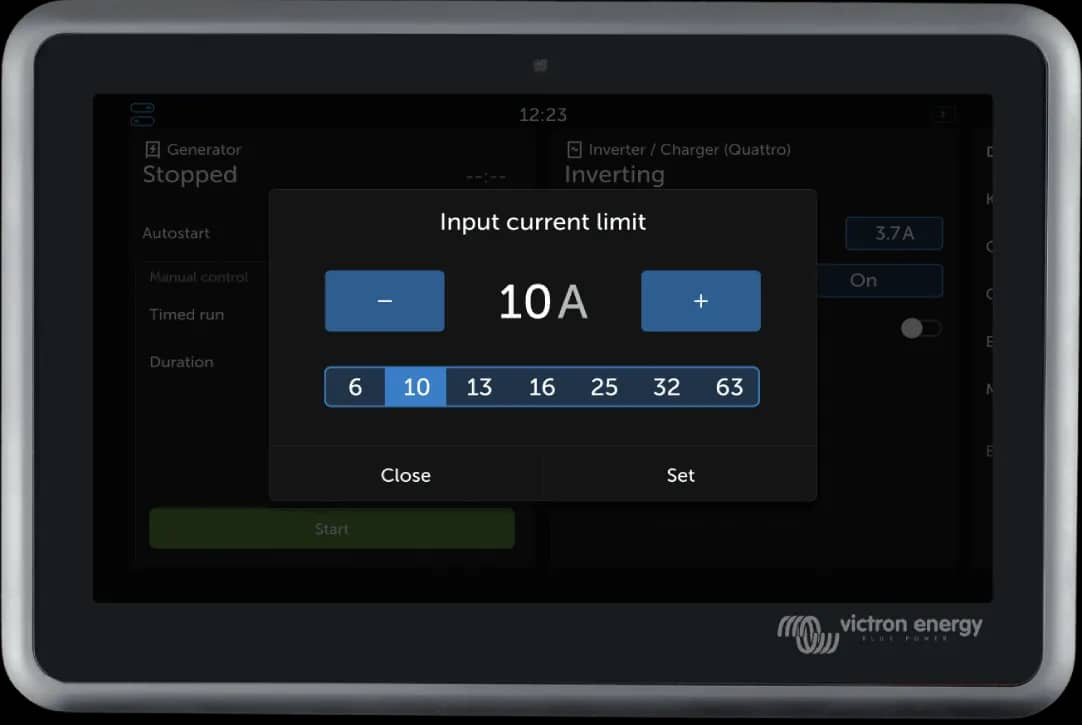

Completely in control

You are in control with the communication centre. Setting the input current limit or remotely switching your generator on or off is easy with quick controls.

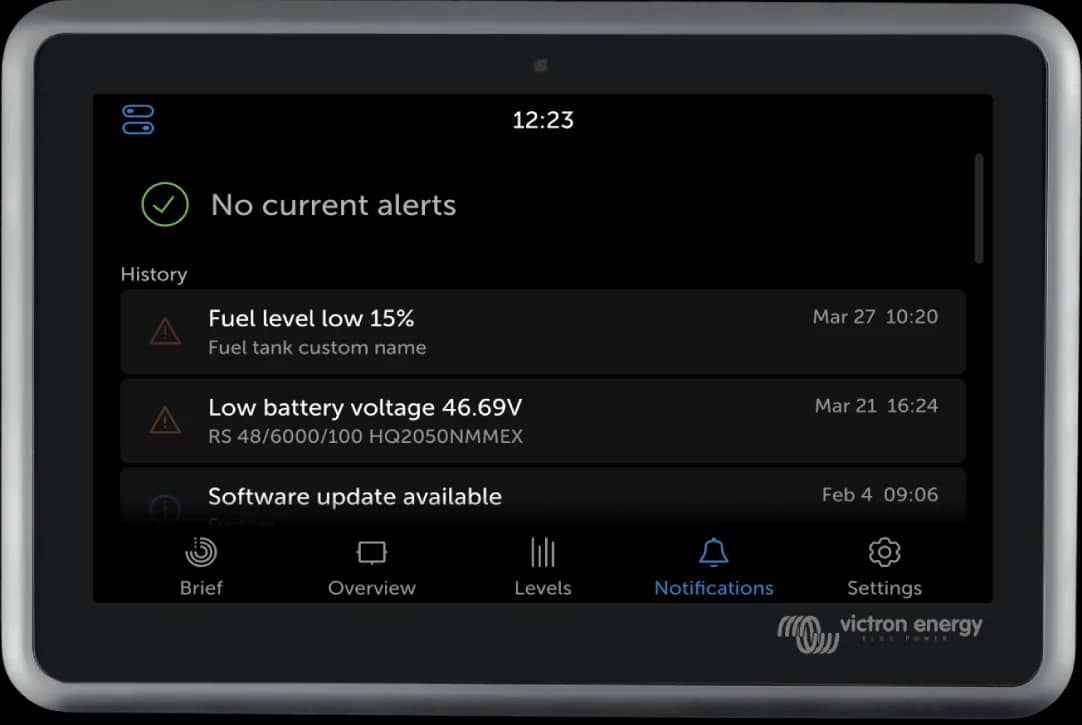

Safety net

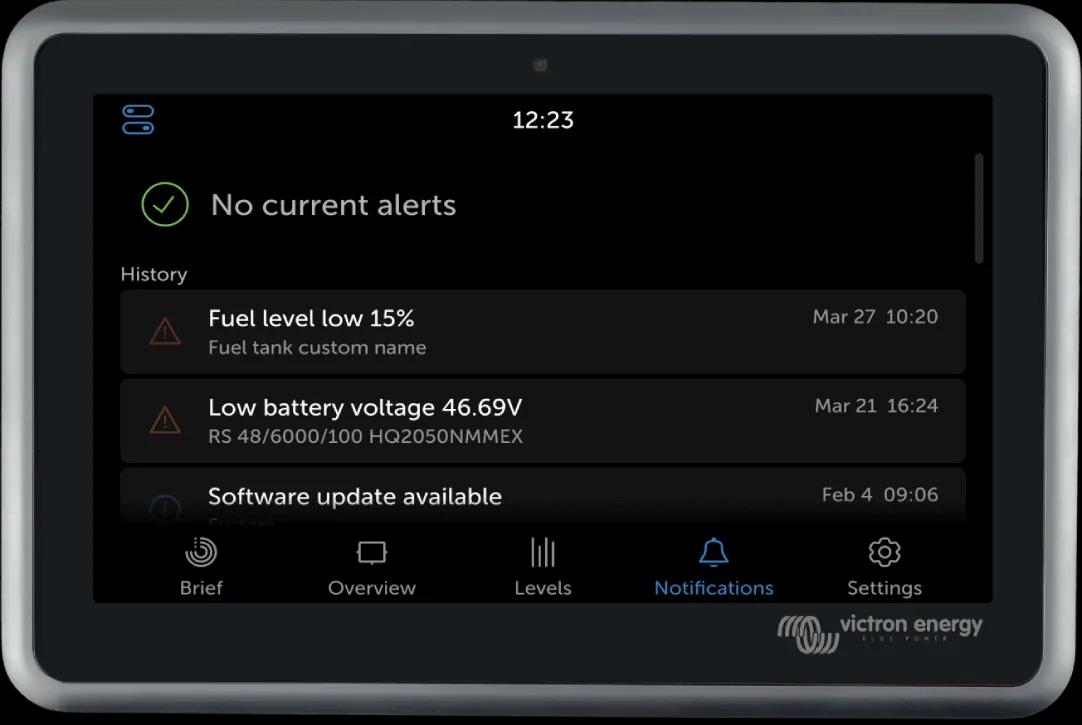

With a set of fully customizable alerts and alarms we’ve created a safety net that will inform you of any issues and critical actions that may be required, helping you ensure your system is safe.

Maximize system performance

Your Ekrano GX will actively maximize the performance of your system. Acting as a communication hub it unifies readings and coordinates system-wide actions to optimize performance for all connected devices. The extremely powerful processor and the innovative Venus OS will ensure that your already efficient hardware reaches new levels of efficiency.

Integrations

Always in perfect control

  • VRM - Remote monitoring

  • MFD integrations

  • Advanced automations

Master remote systems

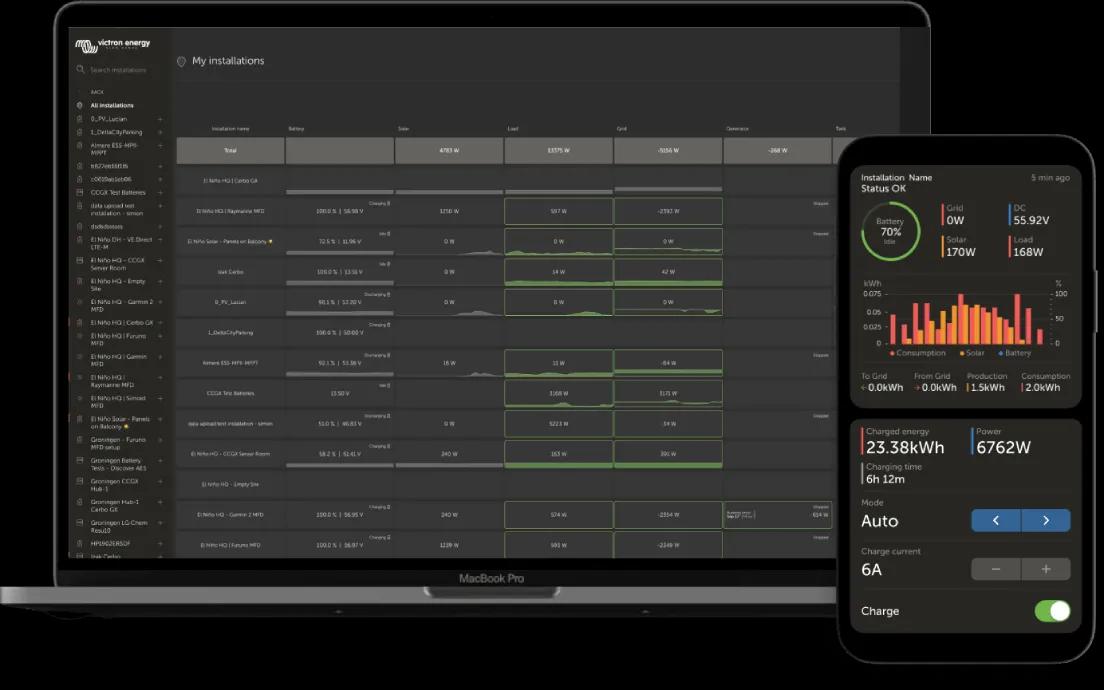

Effortlessly connect to the Victron Remote Monitoring (VRM) portal with your Ekrano GX. Operate your system from a distance with iOS and Android widgets, design custom data views to monitor crucial parameters, manage hundreds of systems at a time and create alerts to prevent serious issues from occurring.

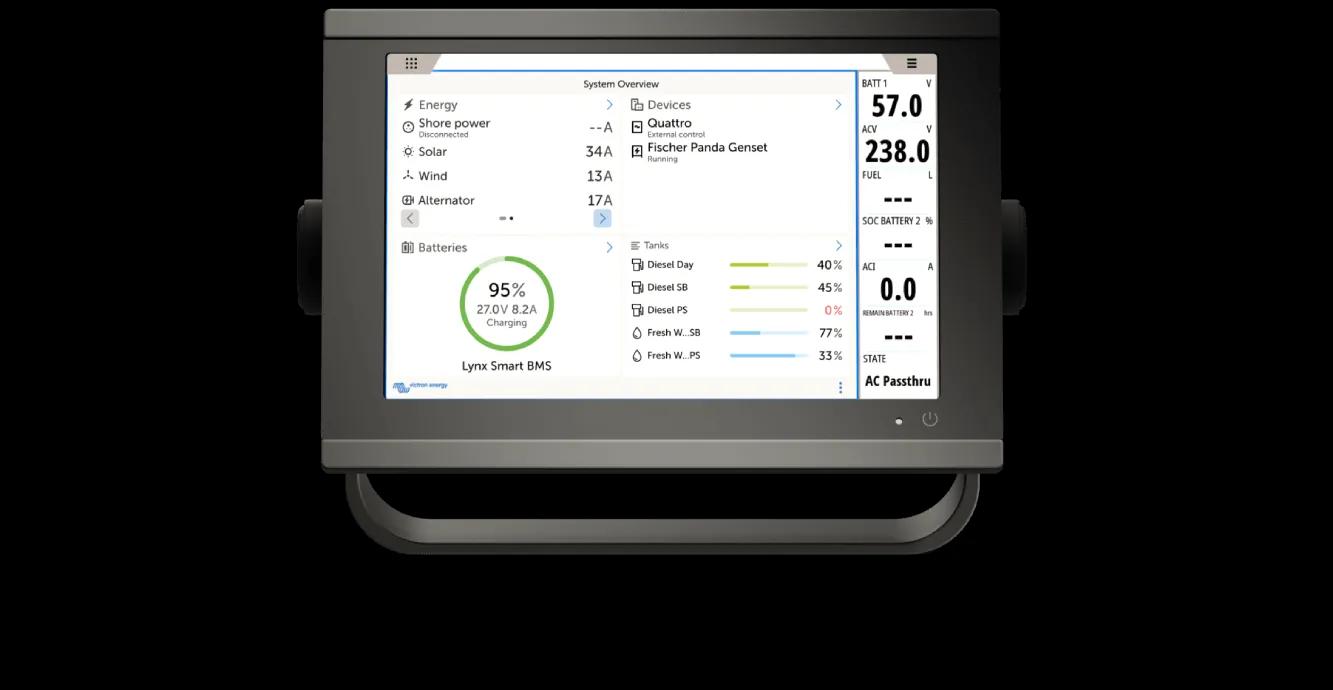

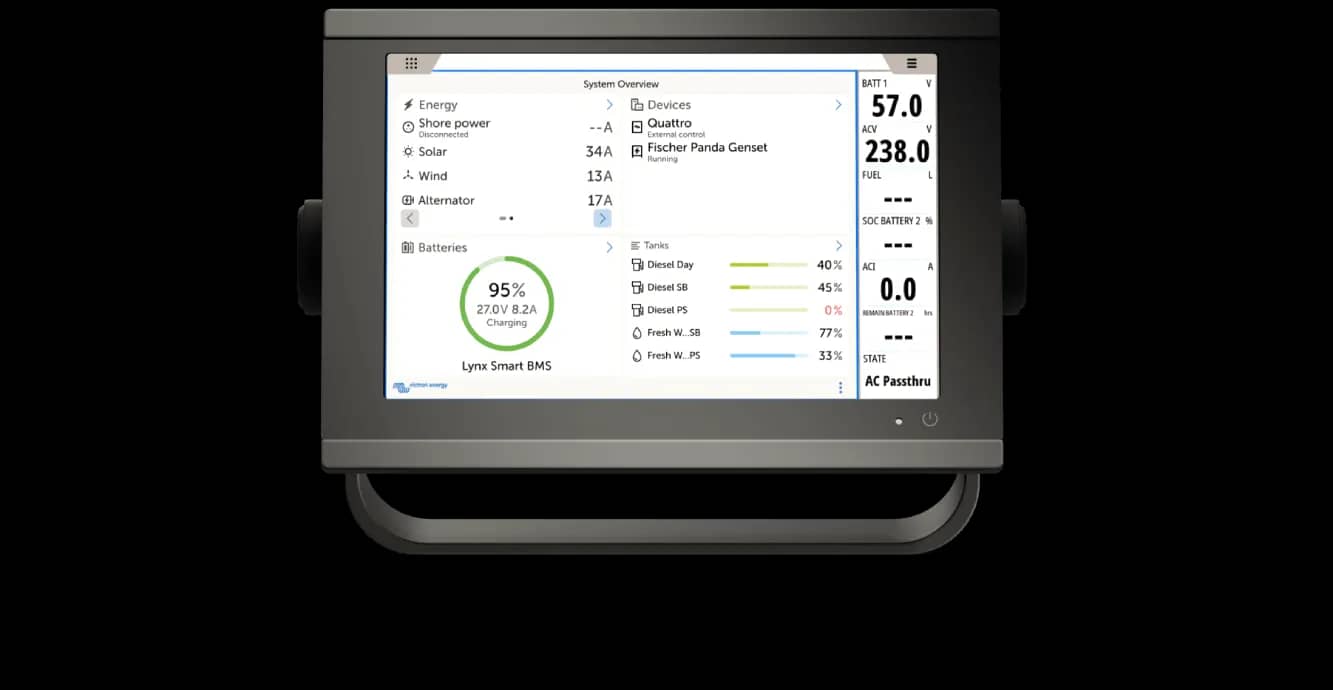

Seamless marine MFD & NMEA integrations

Monitor and control your system right from your glass bridge with our MFD app or use the NMEA2000 marine industry standard integration options.

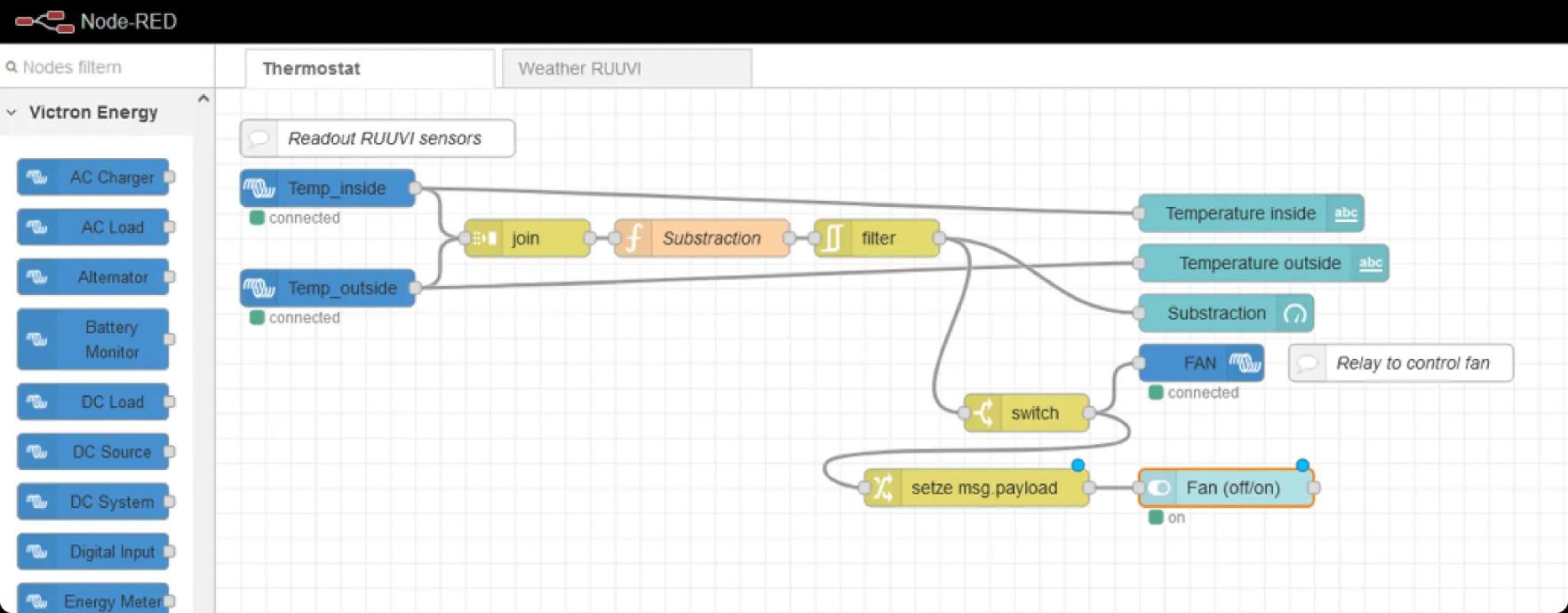

Advanced automations

Take your system customization even further and create intelligent automation flows with Node-RED - the browser-based low-code editor that makes it ever so easy to wire together flows and automations. Easily connect hardware devices, APIs and online services together with PLC like programming.

Applications

Outsmart any power challenge

The Ekrano GX serves endless purposes, extending perfect control to the most diverse applications.

Marine

Easily integrate with your MFD or go all the way thanks to Signal K and NMEA 2000 data sharing for smooth sailing. All right from your glass bridge.

Read more

Energy Storage Systems

Optimise for the many different grid tariffs and times with scheduled charging. Live more efficiently from the sun with improved peak shaving and using VRM’s solar forecasts for your location.

Read more

Off-grid systems

Minimise generator use by prioritising solar power. Auto start/stop generators at the most optimal conditions or add ‘quiet’ periods. Set the most optimal warm-up and cool-down times.

Read more

Hybrid generators

Manage hundreds of systems remotely and keep a close eye on critical parameters with custom VRM widgets and push notifications. Design even more efficient automation flows with Node-Red and Venus OS Large.

Read more

Downloads
and support

Datasheets
  • Ekrano GX
    .PDF
  • Victron GX product range
Manuals
  • Automatic Generator start-stop (HTML5)
    .HTML
  • Automatic Generator start-stop (PDF)
    .PDF
  • ESS (Energy Storage System) - Start page
  • VRM Portal documentation
  • Energy Storage System (HTML5)
    .HTML
  • Energy Storage System (PDF)
    .PDF
  • Ekrano GX (HTML5)
    .HTML
  • Ekrano GX (PDF)
    .PDF
  • VRM Portal manual (HTML5)
    .HTML
  • VRM Portal manual (PDF)
    .PDF
Enclosure Dimensions
  • Ekrano GX
    .PDF
  • Ekrano GX (3D)
    .PDF
  • Ekrano GX (stp)
  • Ekrano GX - Cut-out drawing
    .PDF
High Quality Photos

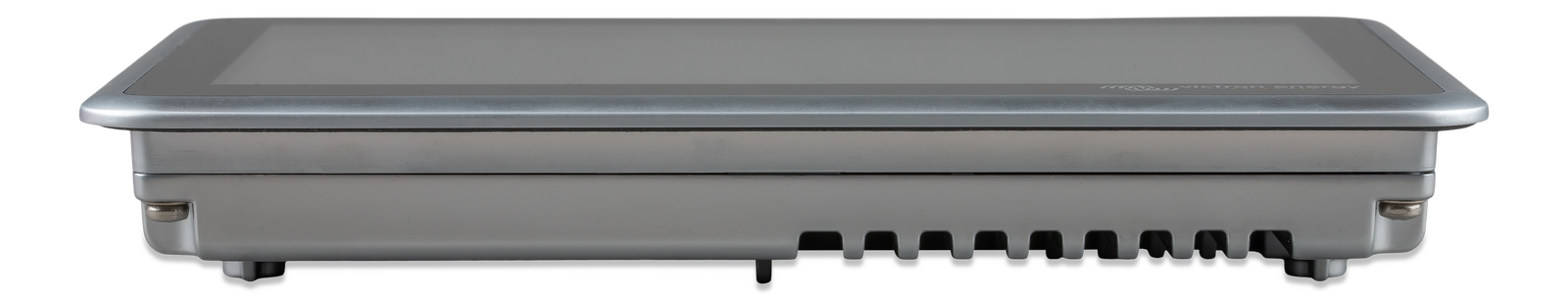

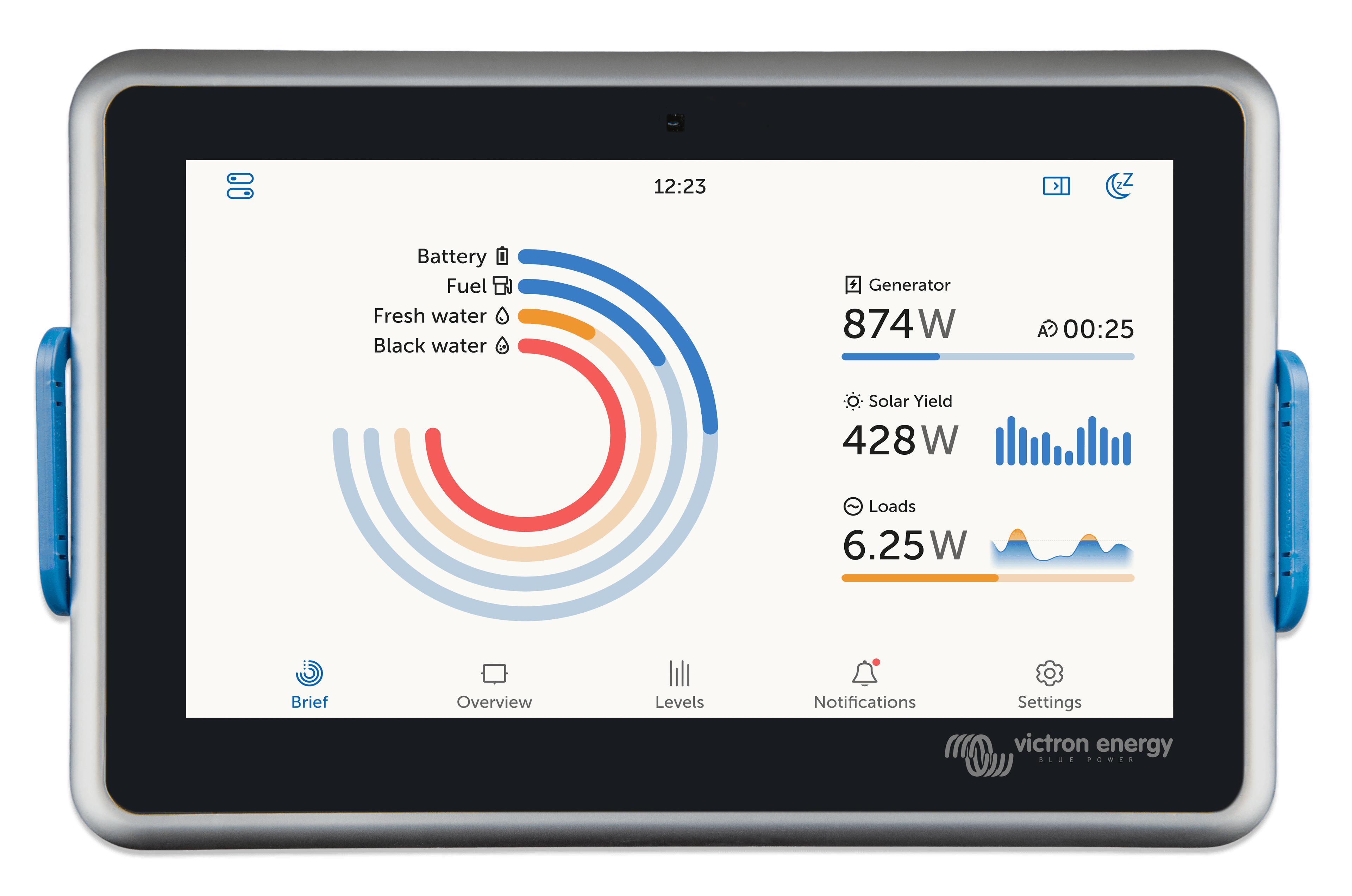

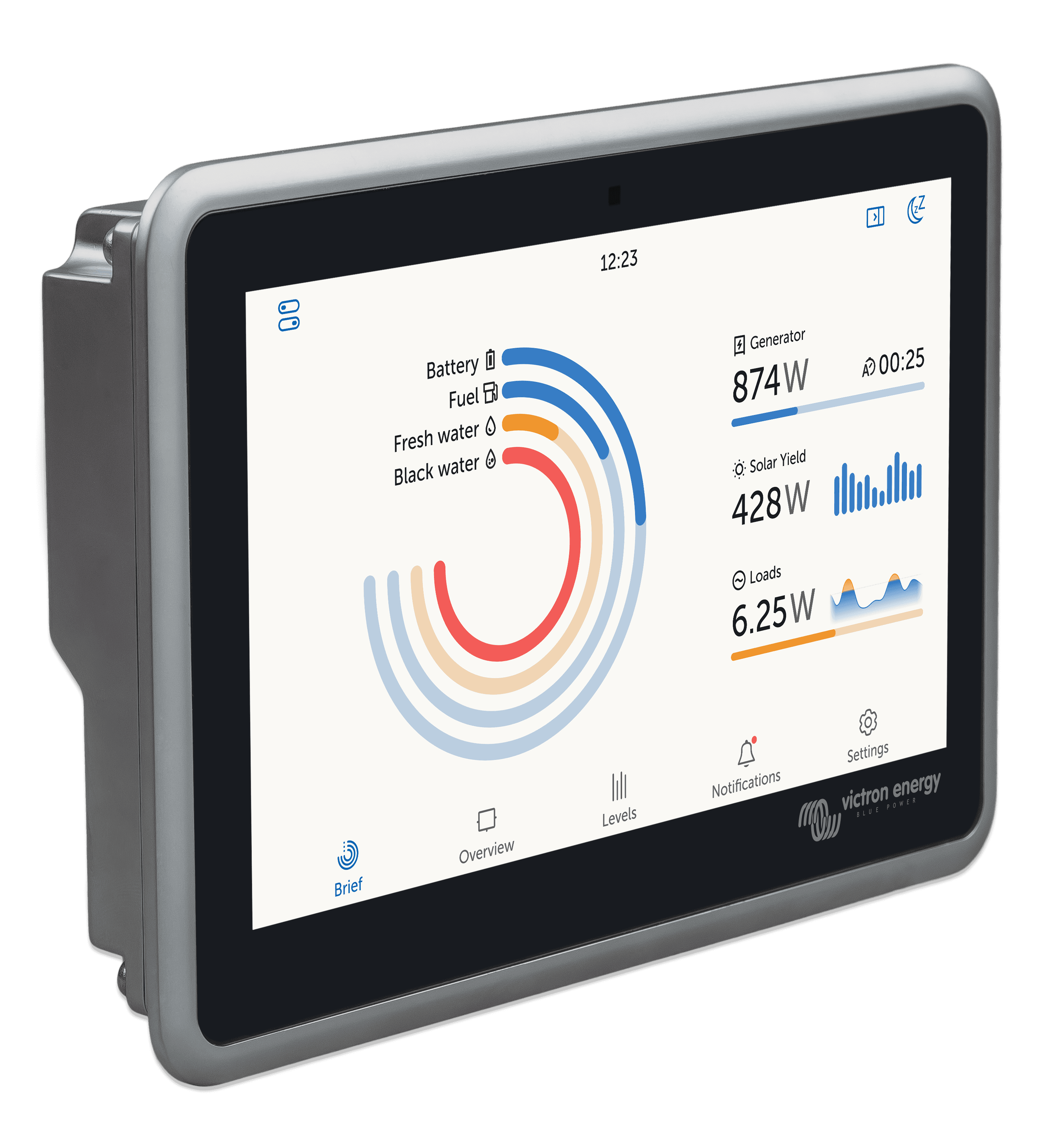

  • Ekrano GX (front-angle)  thumbnail
    Ekrano GX (front-angle)
    .PNG

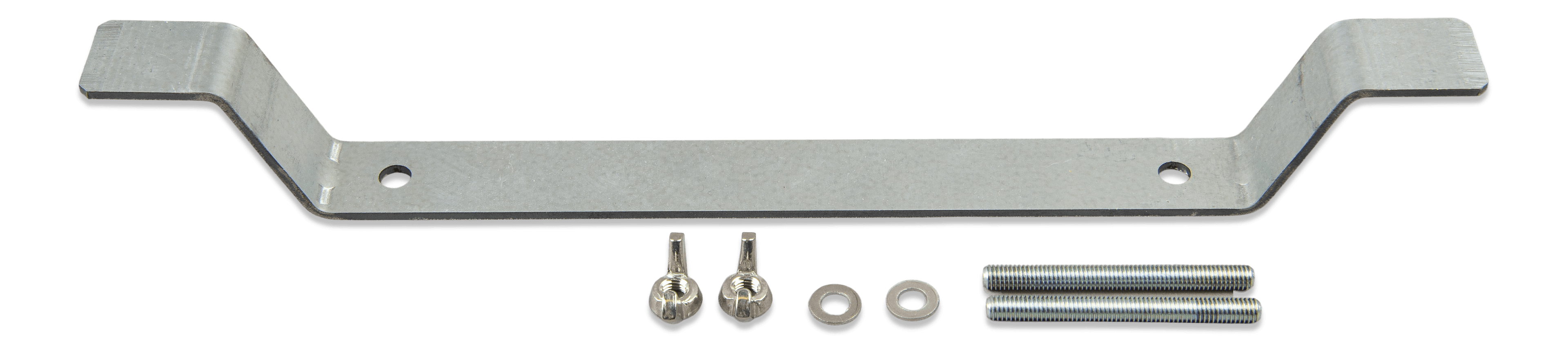

  • Ekrano GX (mounting set 1)  thumbnail
    Ekrano GX (mounting set 1)
    .PNG

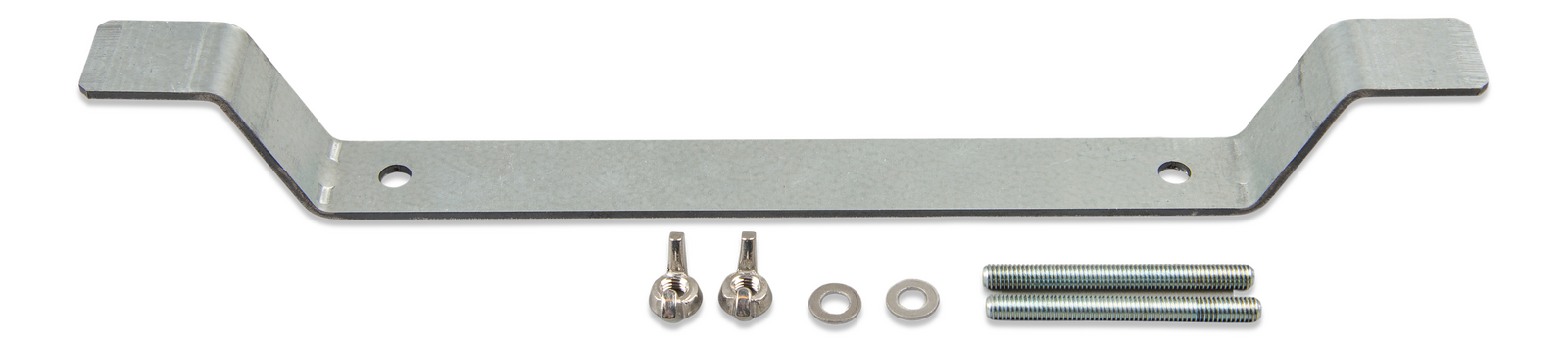

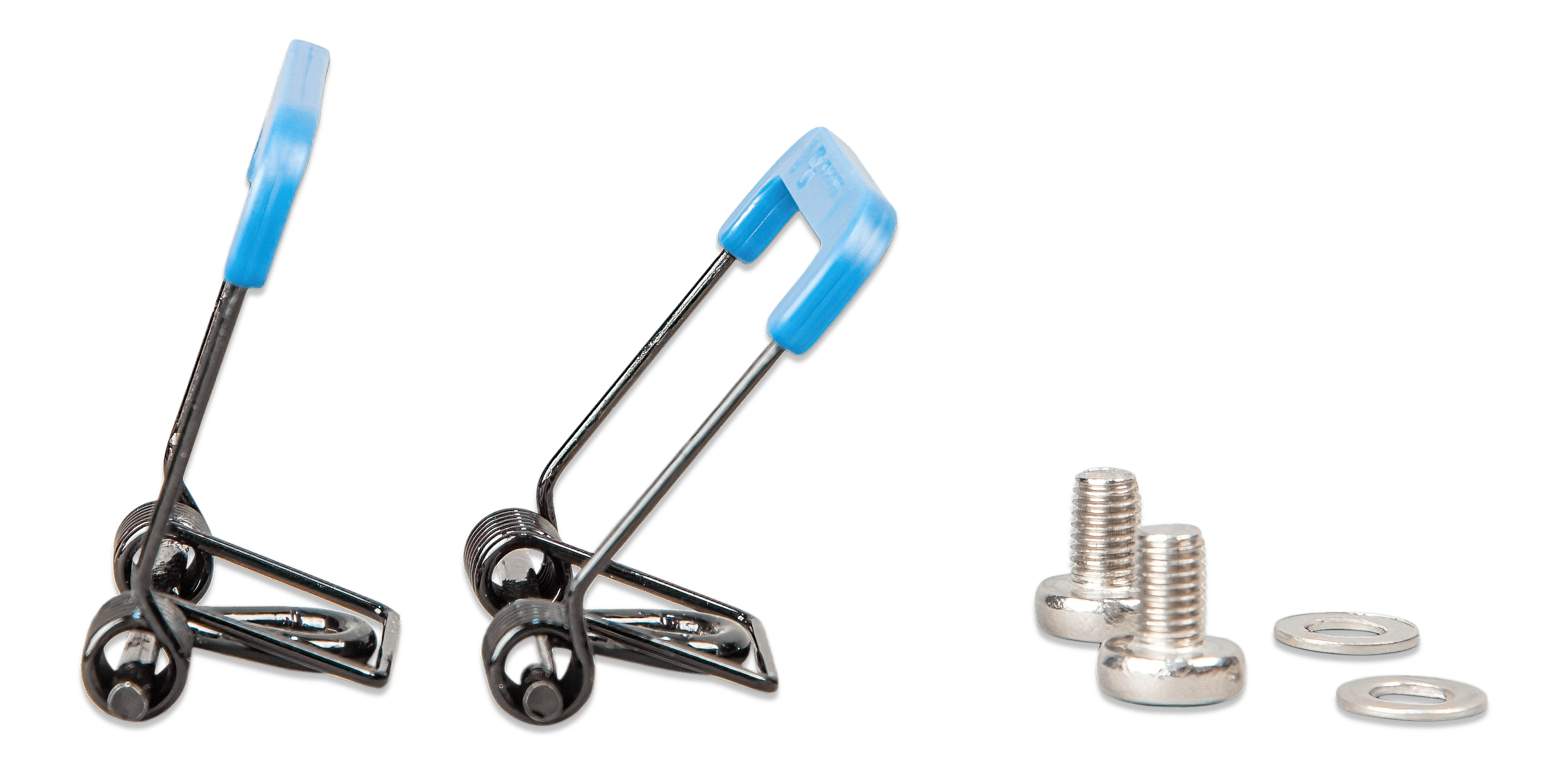

  • Ekrano GX (mounting set2)  thumbnail
    Ekrano GX (mounting set2)
    .PNG

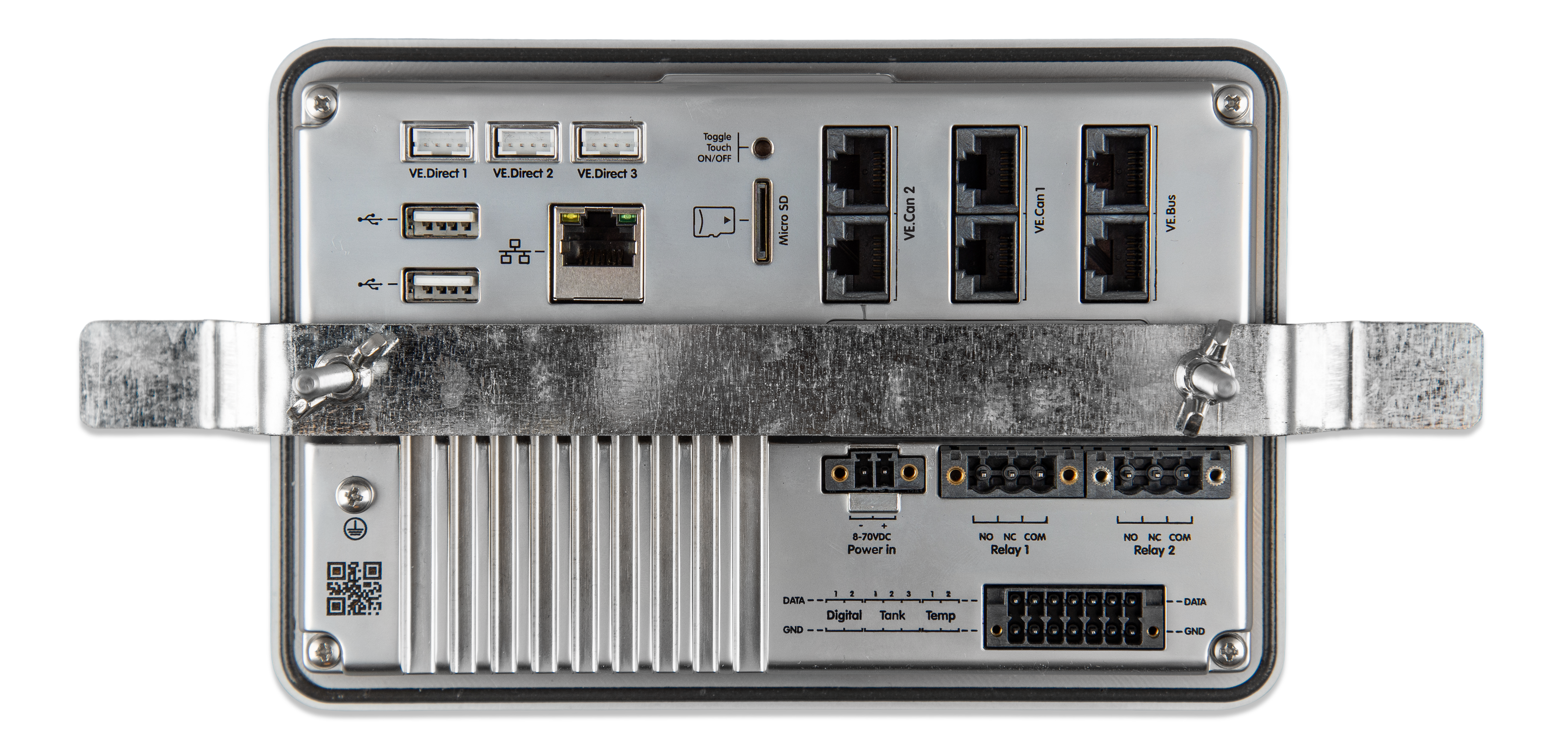

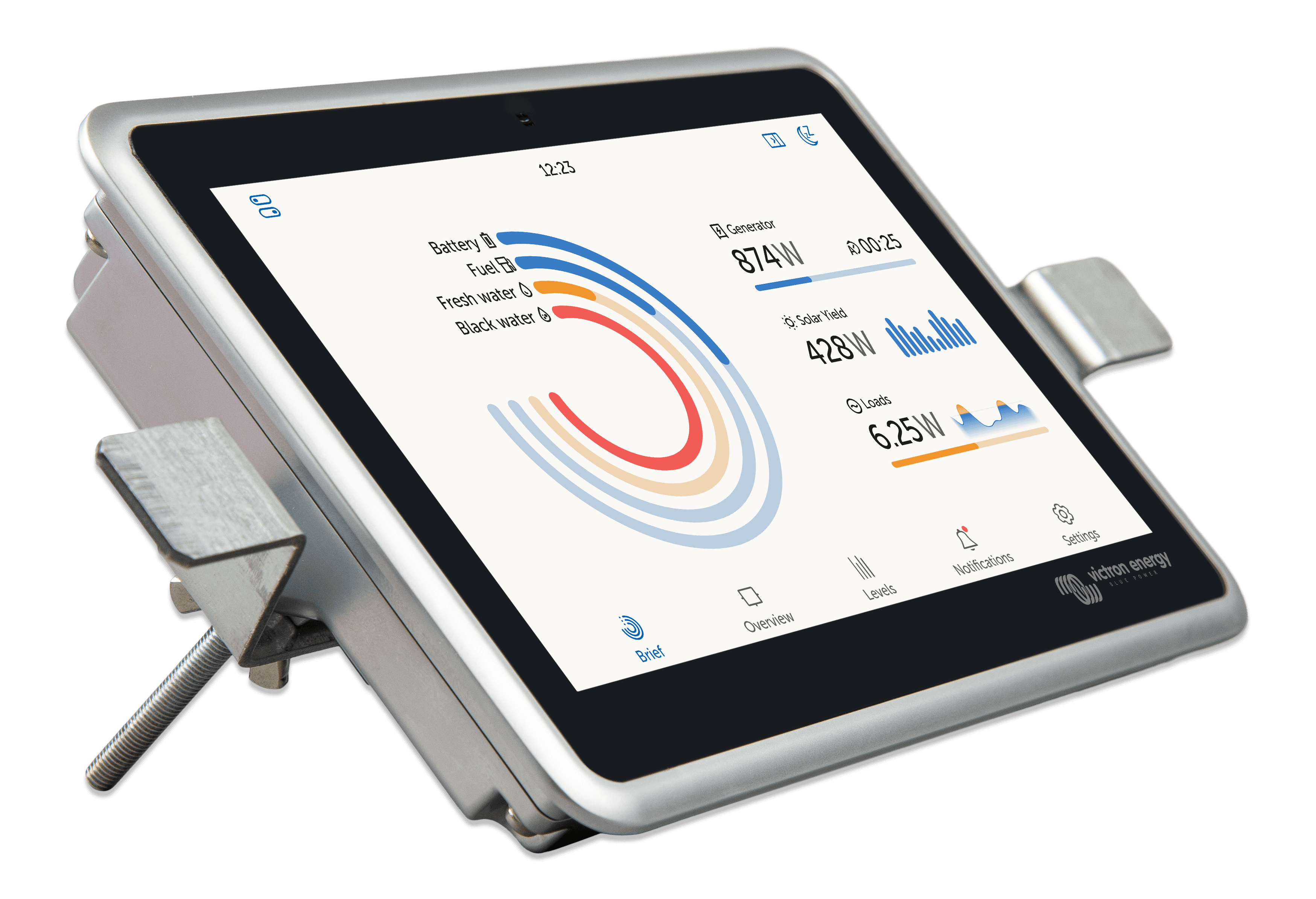

  • Ekrano GX (rear-mounting1)  thumbnail
    Ekrano GX (rear-mounting1)
    .PNG

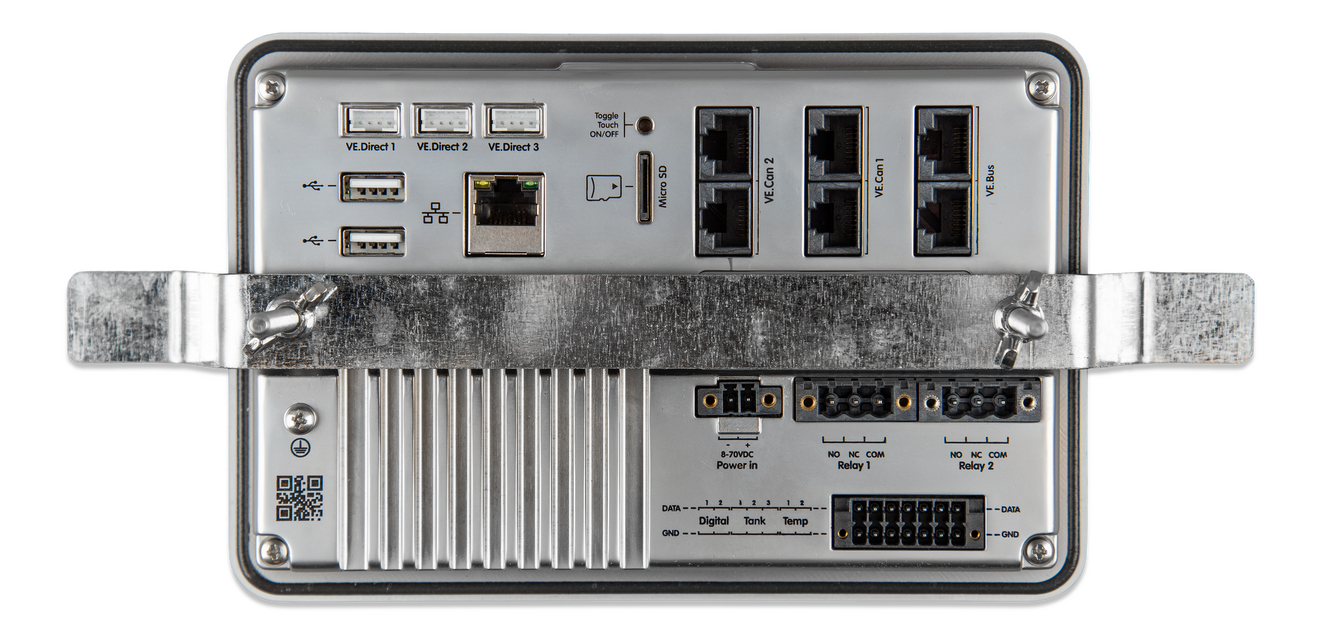

  • Ekrano GX (rear-mounting2)  thumbnail
    Ekrano GX (rear-mounting2)
    .PNG
  • Ekrano GX (rear)  thumbnail
    Ekrano GX (rear)
    .PNG

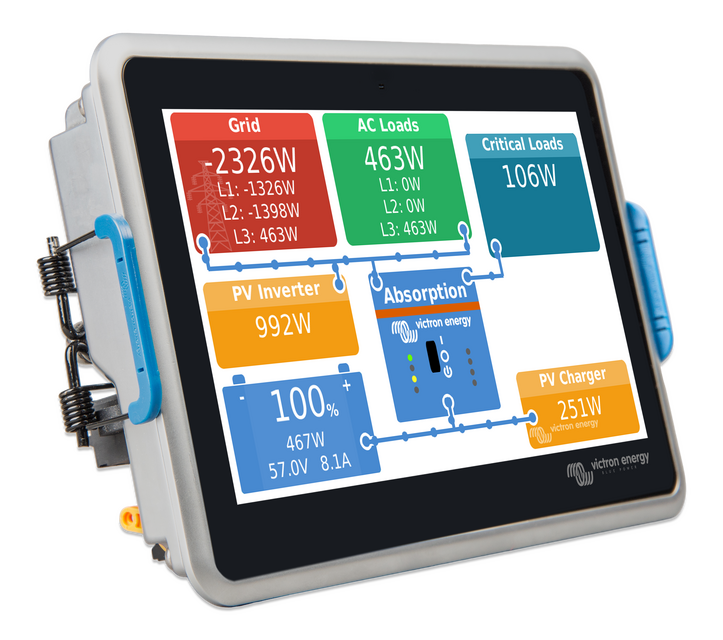

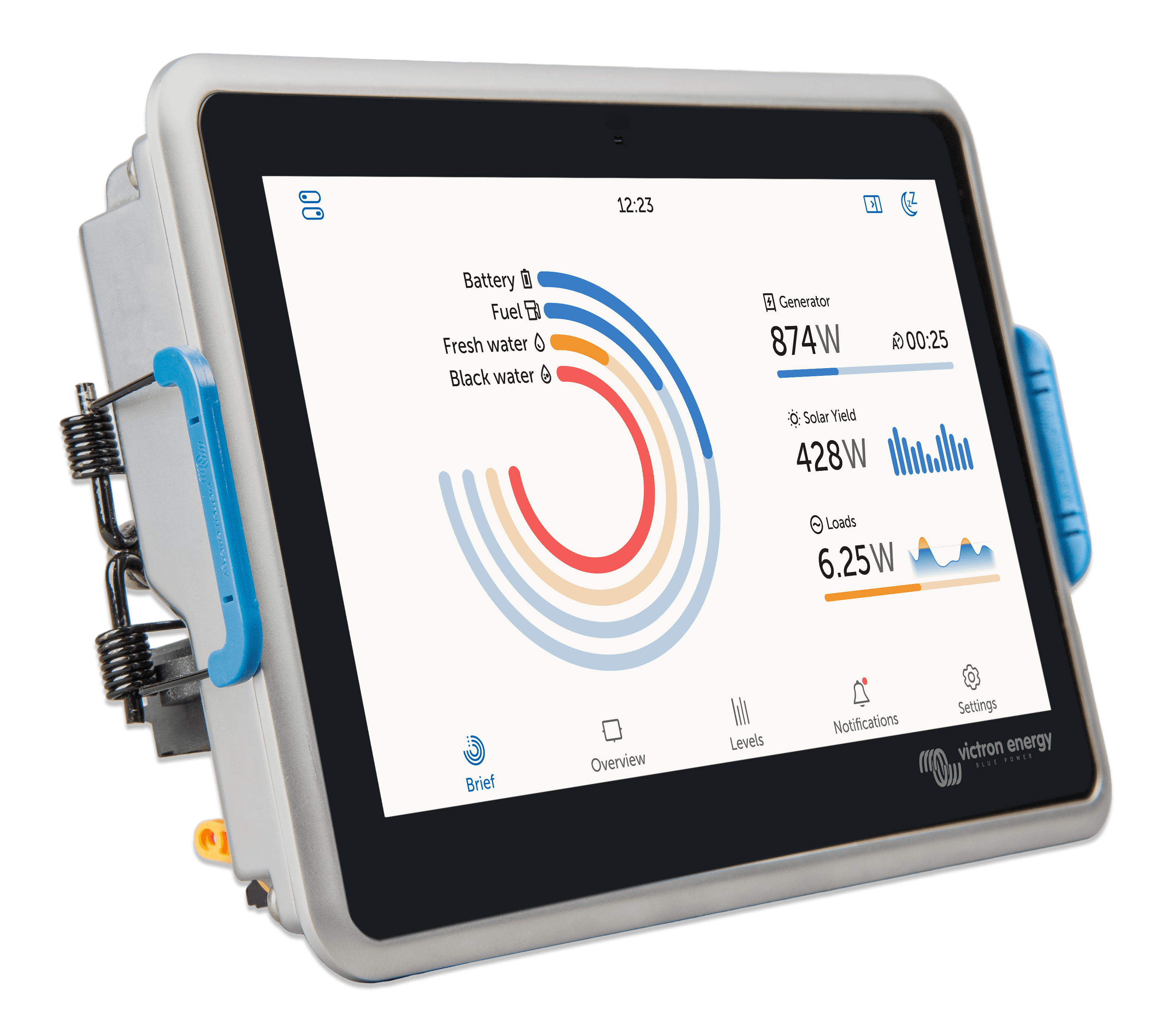

  • Ekrano GX (left-mounting1)  thumbnail
    Ekrano GX (left-mounting1)
    .PNG

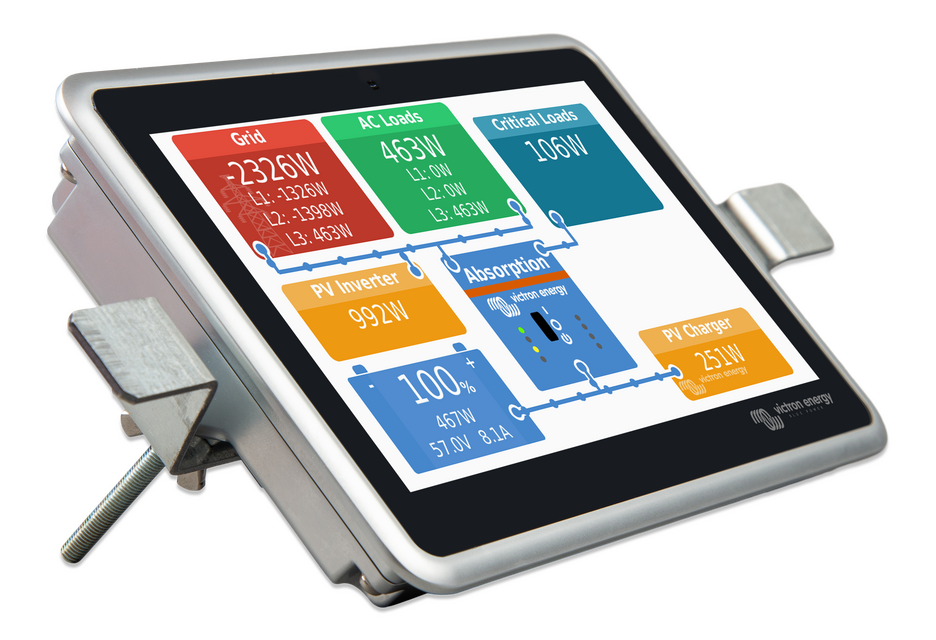

  • Ekrano GX (left-mounting2)  thumbnail
    Ekrano GX (left-mounting2)
    .PNG

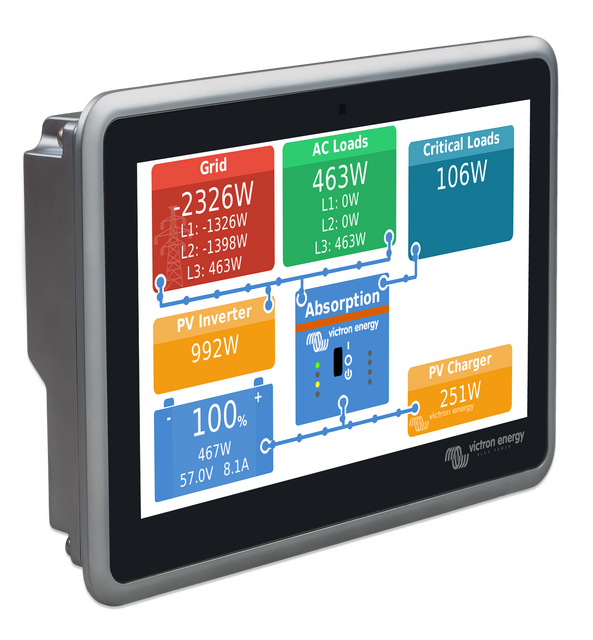

  • Ekrano GX (left)  thumbnail
    Ekrano GX (left)
    .PNG
  • Ekrano GX (lright)  thumbnail
    Ekrano GX (lright)
    .PNG

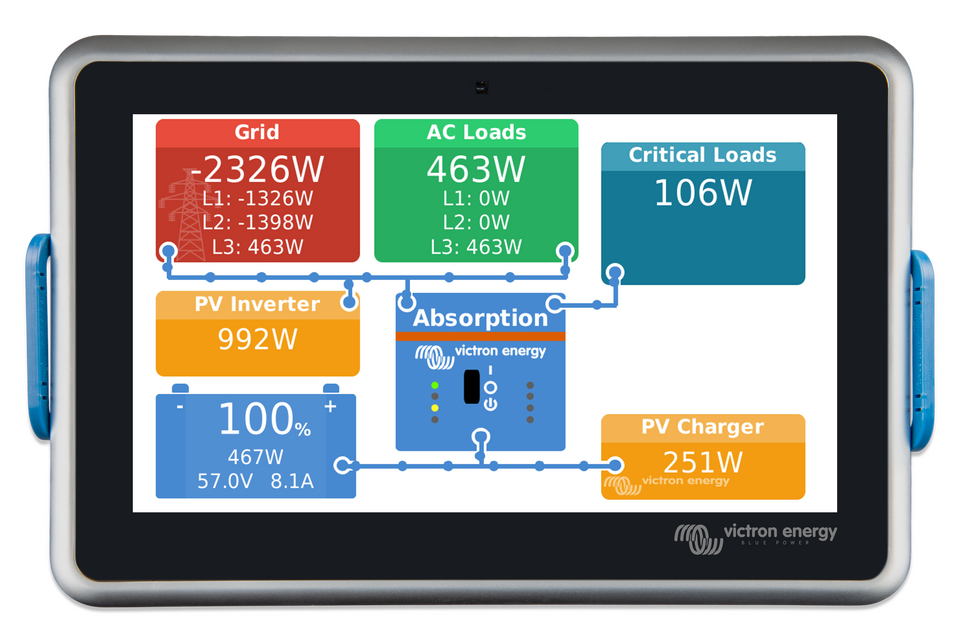

  • Ekrano GX (top-mounting 1)  thumbnail
    Ekrano GX (top-mounting 1)
    .PNG

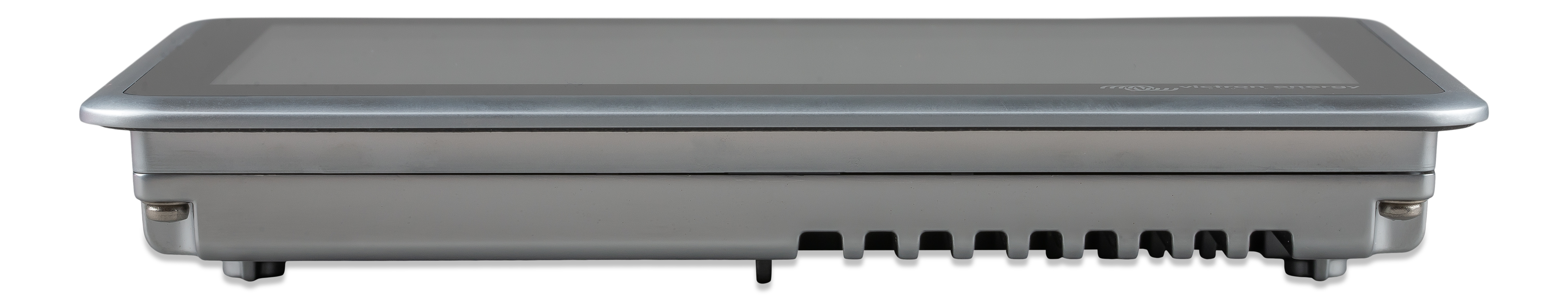

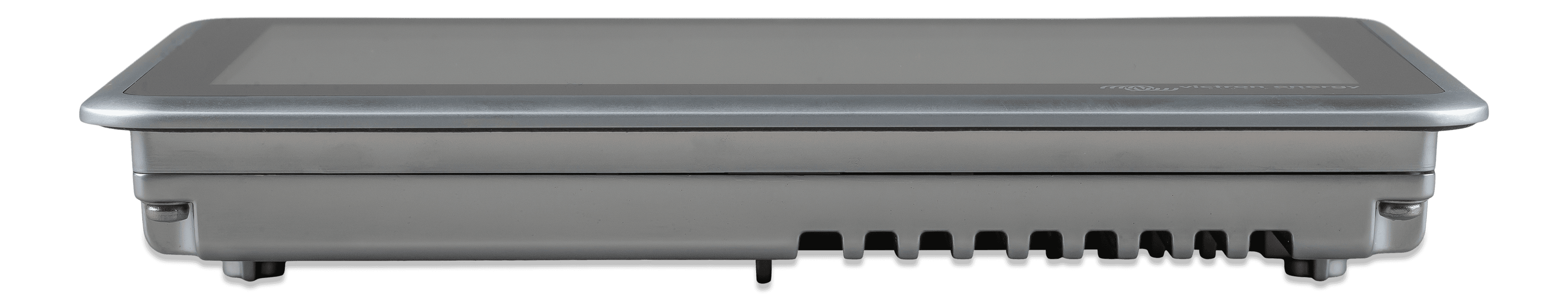

  • Ekrano GX (top)  thumbnail
    Ekrano GX (top)
    .PNG
Technical Information
  • Building an unattended battery based energy system
  • Data communication with Victron Energy products
    .PDF
  • GX Modbus-TCP manual
  • Modbus-TCP register list
    .XLSX
  • Open source
  • Marine Integration Guide
System Schematics
  • Manual and Drawing Multi RS Solar 48 6000 DT 3Phase Smart LiFePO4 48V 600Ah Lynx Smart BMS Class-T Power In Distributor Ekrano GX
    .PDF
Certificates
  • Certificate Automotive ECE R10-6 - Ekrano GX
    .PDF
  • Certificate IEC 62368-1 - Ekrano GX
    .PDF
  • ISO9001 certificate
    .PDF
  • Declaration of Conformity - System Monitoring
    .PDF
  • UK PSTI Statement of Compliance - Communication Centre/System monitoring
    .PDF

Powered by decades of know-how

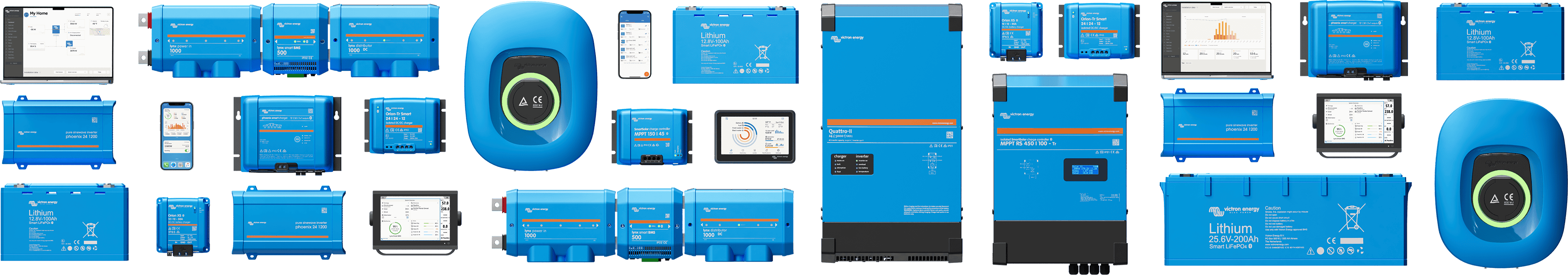

The Blue Power ecosystem
